Selector Lever Removal/Installation: Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Perform the following procedure to remove the selector lever knob.
   NOTE:

   • If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

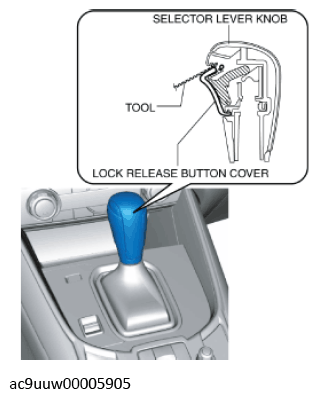

   1. Insert the tool (width: 6 mm {0.2 in} or less, thickness: 1 mm {0.04 in} or less) as shown in the figure.
      Fig 1: Shifting Selector Lever To N Position

      Courtesy of MAZDA MOTORS CORP.

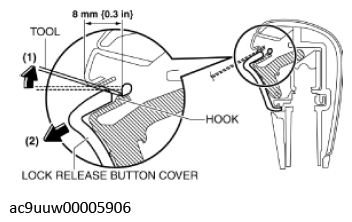

   2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.
      Fig 2: Moving Lock Release Button Cover

      Courtesy of MAZDA MOTORS CORP.
   3. Remove the spring.
      Fig 3: Removing Spring

      Courtesy of MAZDA MOTORS CORP.
   4. Remove the selector lever knob.
      Fig 4: Locating Selector Lever Knob

      Courtesy of MAZDA MOTORS CORP.
3. Remove the following parts:
   1. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
   3. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
   4. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   5. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
4. Disconnect the wiring harness clip from the selector lever component.
   Fig 5: Locating Wiring Harness Clip From Selector Lever Component

   Courtesy of MAZDA MOTORS CORP.
5. Disconnect the selector lever component connector.
   Fig 6: Disconnecting Selector Lever Component Connector

   Courtesy of MAZDA MOTORS CORP.
6. Remove the selector cable (selector lever side). (See SELECTOR CABLE REMOVAL/INSTALLATION .)
7. Remove the nuts from the selector lever component.

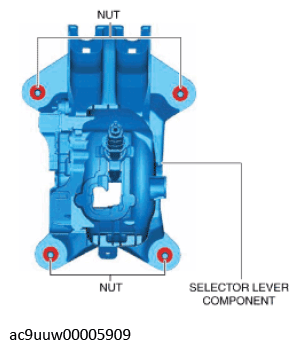

   Fig 7: Removing Nuts From Selector Lever Component

   Courtesy of MAZDA MOTORS CORP.
8. Remove the selector lever component.
9. Remove the selector lever bracket.

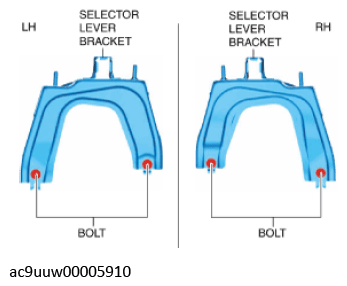

   Fig 8: Removing Selector Lever Bracket

   Courtesy of MAZDA MOTORS CORP.
10. Install the selector lever bracket.

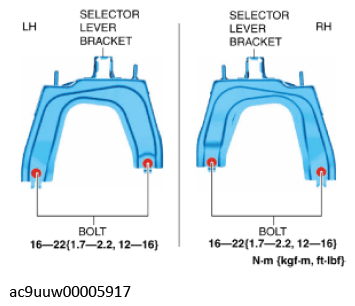

    Fig 9: Installing Selector Lever Bracket

    Courtesy of MAZDA MOTORS CORP.
11. Install the selector lever component.
12. Install the nuts to the selector lever component.

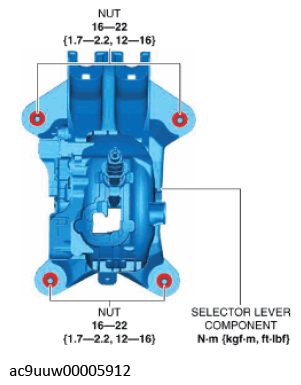

    Fig 10: Installing Nuts To Selector Lever Component

    Courtesy of MAZDA MOTORS CORP.
13. Install the selector cable (selector lever side). (See SELECTOR CABLE REMOVAL/INSTALLATION .)
14. Connect the selector lever component connector.

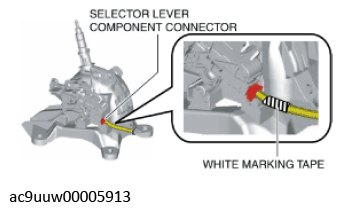

    Fig 11: Connecting Selector Lever Component Connector

    Courtesy of MAZDA MOTORS CORP.
    NOTE:

    • White marking tape is adhered to the selector lever component connector. Verify that it is correctly installed as shown in the figure.
15. Connect the wiring harness clip to the selector lever component.
    Fig 12: Locating Wiring Harness Clip From Selector Lever Component

    Courtesy of MAZDA MOTORS CORP.
16. Install the following parts:
    1. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    2. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    3. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
17. Perform the following procedure to install the selector lever knob.
    1. Install the spring to the selector lever knob.
       CAUTION:

       • Install the spring so that it is stopped by the stopper.

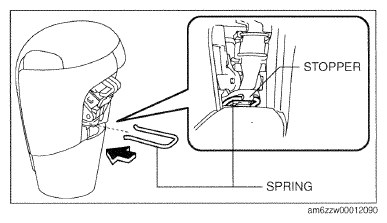

       Fig 13: Installing Spring To Stopper

       Courtesy of MAZDA MOTORS CORP.
    2. Install the selector lever knob to the selector lever component.

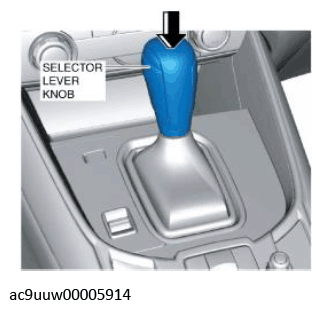

       Fig 14: Locating Selector Lever Knob

       Courtesy of MAZDA MOTORS CORP.
    3. Install the lock release button cover so that it engages with the hook of the selector lever knob.
    Fig 15: Installing Lock Release Button Cover

    Courtesy of MAZDA MOTORS CORP.
18. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

Indicator Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Selector lever knob (See SELECTOR LEVER REMOVAL/INSTALLATION .)
   2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
3. Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.
   Fig 16: Removing Boots Securing Parts

   Courtesy of MAZDA MOTORS CORP.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

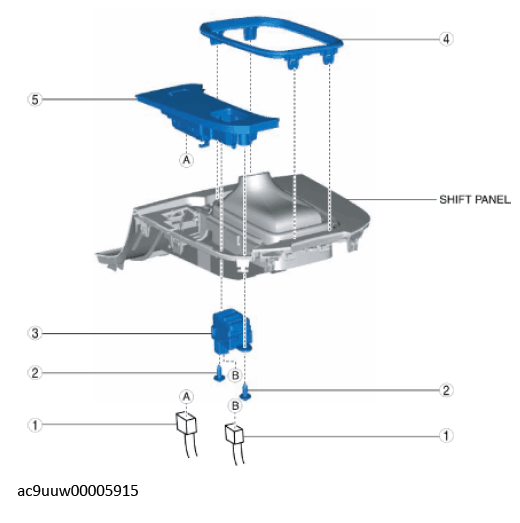

Fig 17: Removing/Installing Shift Panel Components

Courtesy of MAZDA MOTORS CORP.
