BSM Warning Light Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Inner garnish
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
4. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL ) (See OUTER MIRROR GLASS INSTALLATION .)
Verify that the continuity between BSM warning light connector terminals is as indicated in the table.

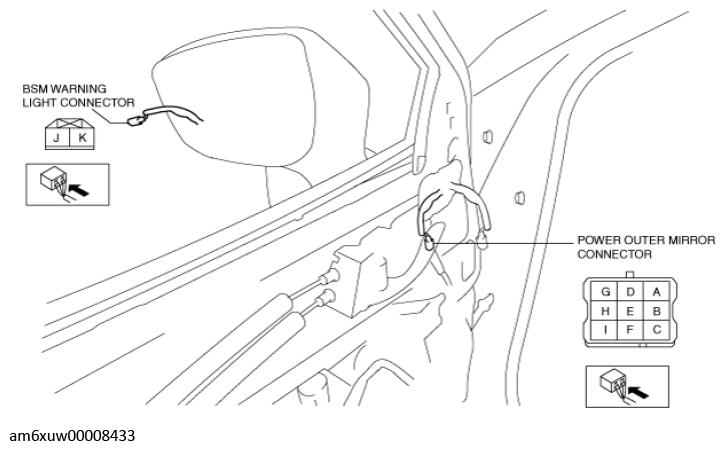

Fig 1: BSM Warning Light Connector
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
Fig 2: BSM Warning Light Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
