Resistance Inspection: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
  3. Verify that the resistance between cluster switch terminals B and C is as indicated in the table.

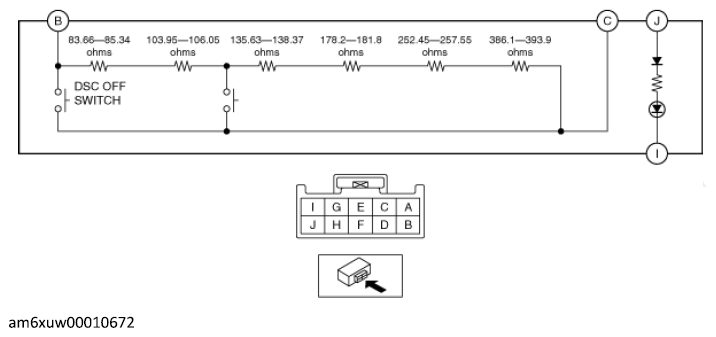

    Fig 1: Checking Resistance Between Cluster Switch Terminals B And C
    G12234493Courtesy of MAZDA MOTORS CORP.
