Relay Location

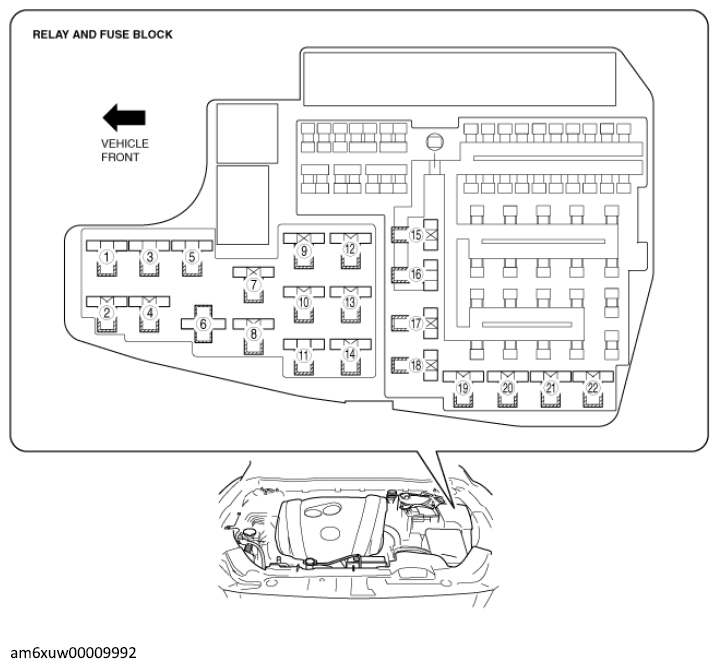

Fig 1: Relay And Fuse Block Location

Courtesy of MAZDA MOTORS CORP.

RELAY AND FUSE BOX RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
1	2.5 - Cooling Fan Relay No. 3 2.2 - Blow-by Heater Relay
2	Main Relay
3	DRL Relay
4	-
5	Headlight LO Relay No. 2
6	Blower Relay
7	ACC Relay
8	Horn Relay
9	Windshield Wiper Deicer Relay
10	A/C Relay
11	-
12	Starter Relay
13	Headlight HI Relay
14	TNS Relay
15	IG1 Relay No. 1
16	Headlight LO Relay No. 1
17	-
18	2.5 - Sub Relay 2.5T - Fuel Injector Relay 2.2 - Check Connector
19	2.5/2.5T - Electric Variable Valve Timing Relay 2.2 - SCR Relay No. 1
20	IG1 Relay No. 2
21	2.5/2.5T - Fuel Pump Relay 2.2 - SCR Relay No. 2
22	Rear Window Defogger Relay
- : Not Applicable
