Selector Cable End (Transaxle Side) Installation Note

  1. Install a clip to the groove of the selector cable end (transaxle side).
    CAUTION:
    • Pull the clip within the range shown in the figure below. If the clip is pulled excessively, it could deform and no longer function.

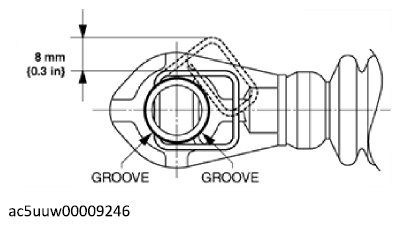

    Fig 1: Pulling Clip With Range
    G12233208Courtesy of MAZDA MOTORS CORP.
