Troubleshooting Procedure

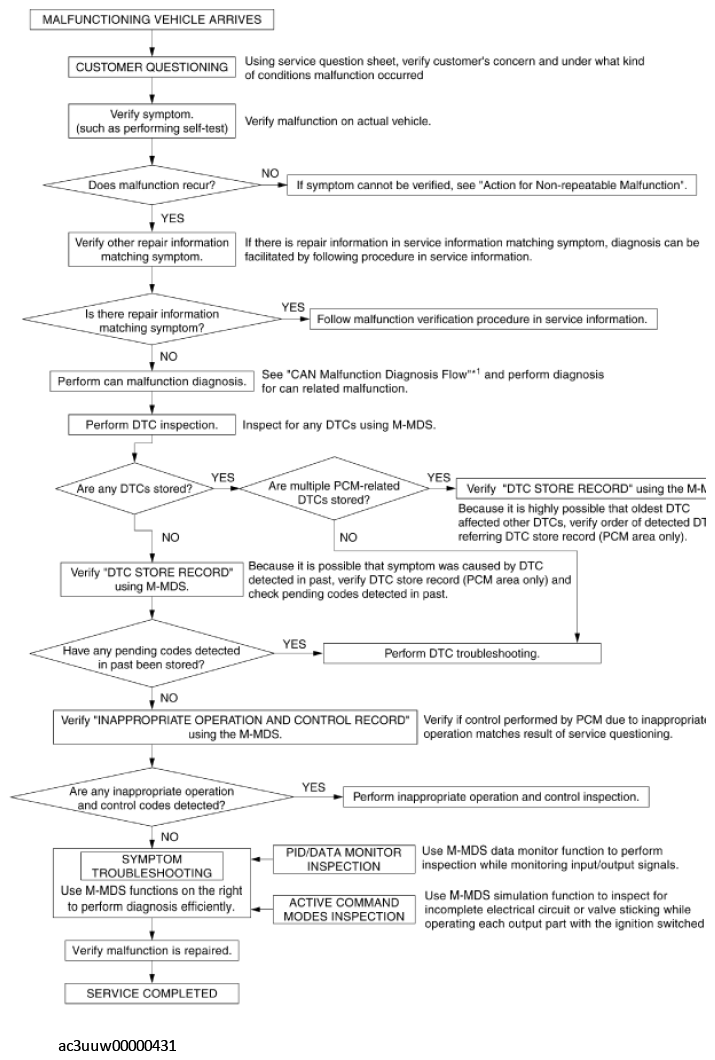

Fig 1: Foreword (SKYACTIV-G 2.0) Troubleshooting Procedure Flowchart
G11437451Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
