Drive Selection Switch Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the center console tray. (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
- Remove the shift bezel. (See SHIFT BEZEL REMOVAL/INSTALLATION .)
- Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
- Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

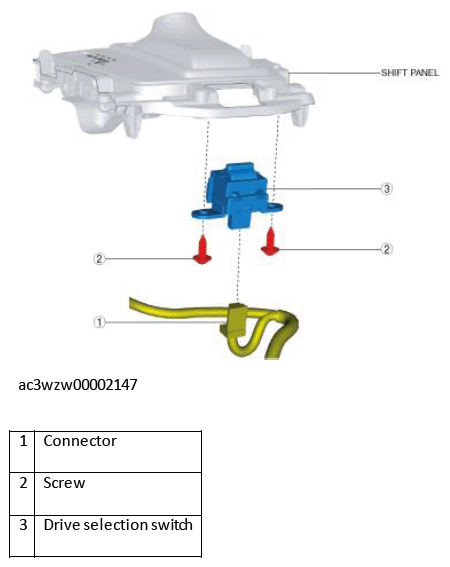

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
