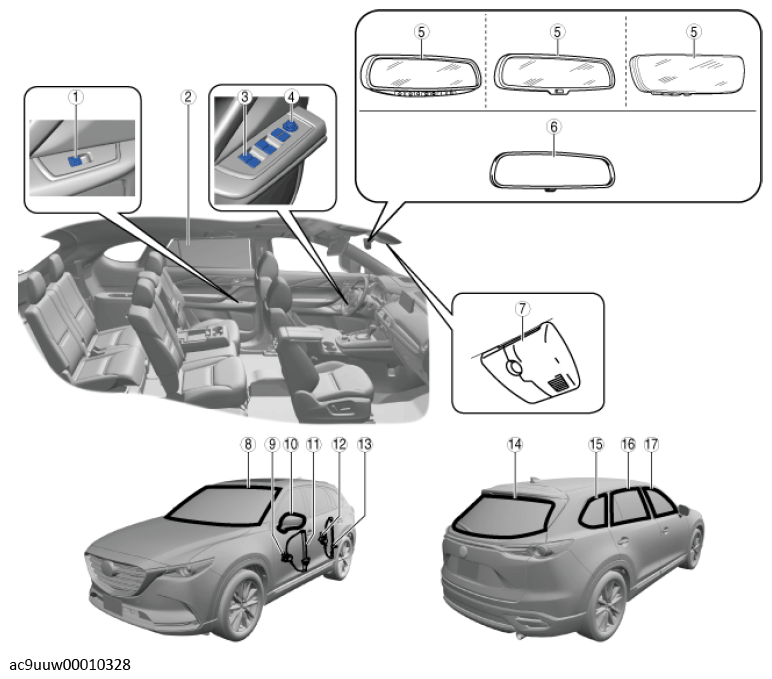

| 1 |
Power window subswitch
(See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW SUBSWITCH INSPECTION .) |
| 2 |
Rear door sunshade
(See REAR DOOR SUNSHADE REMOVAL/INSTALLATION .) |
| 3 |
Power window main switch
(See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW MAIN SWITCH INSPECTION .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| 4 |
Power outer mirror switch
(See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR SWITCH INSPECTION .) |
| 5 |
Auto-dimming rearview mirror
(See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .)
(See
Auto-Dimming Rear View Mirror Inspection .) |
| 6 |
Rearview mirror
(See
Rear View Mirror Removal/Installation .) |
| 7 |
Sensor cover
(See SENSOR COVER REMOVAL/INSTALLATION .) |
| 8 |
Windshield
(See WINDSHIELD REMOVAL .)
(See WINDSHIELD INSTALLATION .) |
| 9 |
Front power window motor
(See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
(See FRONT POWER WINDOW MOTOR INSPECTION .) |
| 10 |
Power outer mirror
(See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR INSPECTION .)
(See OUTER MIRROR GLASS REMOVAL )
(See OUTER MIRROR GLASS INSTALLATION .)
(See OUTER MIRROR GLASS INSPECTION .)
(See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .) |
| 11 |
Front power window regulator
(See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) |
| 12 |
Rear power window motor
(See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
(See REAR POWER WINDOW MOTOR INSPECTION .) |
| 13 |
Rear power window regulator
(See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) |
| 14 |
Rear window glass
(See REAR WINDOW GLASS REMOVAL .)
(See REAR WINDOW GLASS INSTALLATION .)
(See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER SYSTEM INSPECTION .)
(See REAR WINDOW DEFOGGER INSPECTION .)
(See REAR WINDOW DEFOGGER REPAIR .) |
| 15 |
Quarter window glass
(See QUARTER WINDOW GLASS REMOVAL )
(See QUARTER WINDOW GLASS INSTALLATION .) |
| 16 |
Rear door glass
(See REAR DOOR GLASS REMOVAL/INSTALLATION .) |
| 17 |
Front door glass
(See FRONT DOOR GLASS REMOVAL/INSTALLATION .) |
