Relay Location

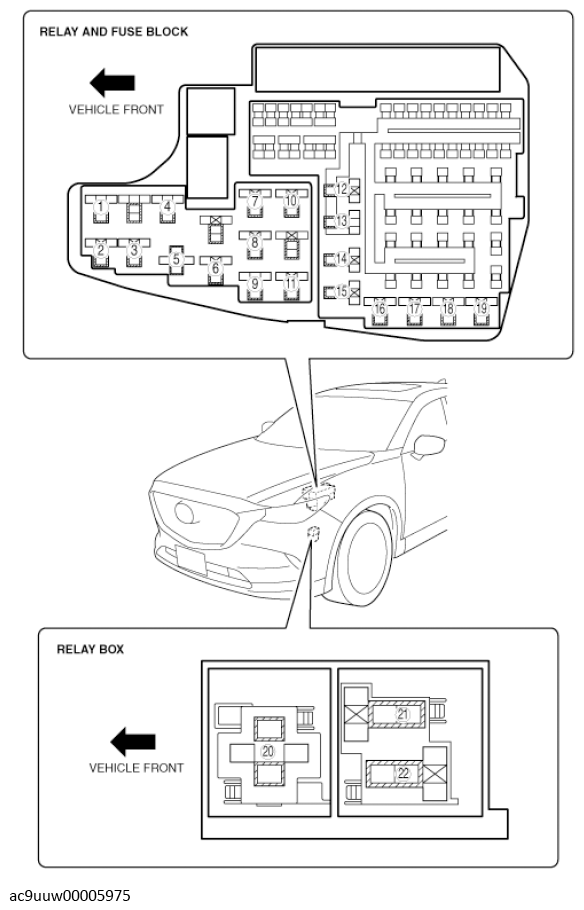

Fig 1: Relay Components Location

Courtesy of MAZDA MOTORS CORP.

RELAY AND FUSE BOX RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
1	Main Relay
2	Front Fog Light Relay
3	Rear Widow Defogger Relay
4	Headlight Lo Relay No. 2
5	Front Blower Relay
6	Electric Variable Valve Timing Relay
7	Rear Blower Relay
8	ACC Relay
9	Brake Light Relay
10	DRL Relay
11	Starter Relay
12	IG1 Relay
13	Headlight Lo Relay No. 1
14	Fuel Injector Relay
15	Fuel Pump Relay
16	Headlight Hi Relay
17	A/C Relay
18	Heated Steering Wheel Relay
19	TNS Relay
20	Cooling Fan Relay
21	Windshield Wiper De-icer Relay
22	Horn Relay
