Battery Tray Installation Note

Set the battery tray to the installation position.
Tighten the battery tray installation bolts in the order shown in the figure.

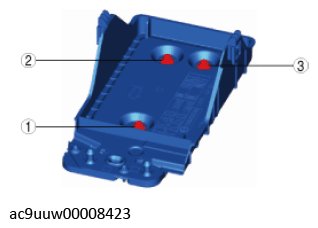

Fig 1: Battery Tray Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

22 - 30 N.m {2.3 - 3.0 kgf.m, 17 - 22 ft.lbf}
Install the rubber at the two locations on the air cleaner component to the battery tray.

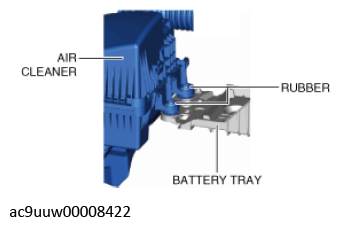

Fig 2: Rubber, Air Cleaner And Battery Tray

Courtesy of MAZDA MOTORS CORP.
