Control System Location Index

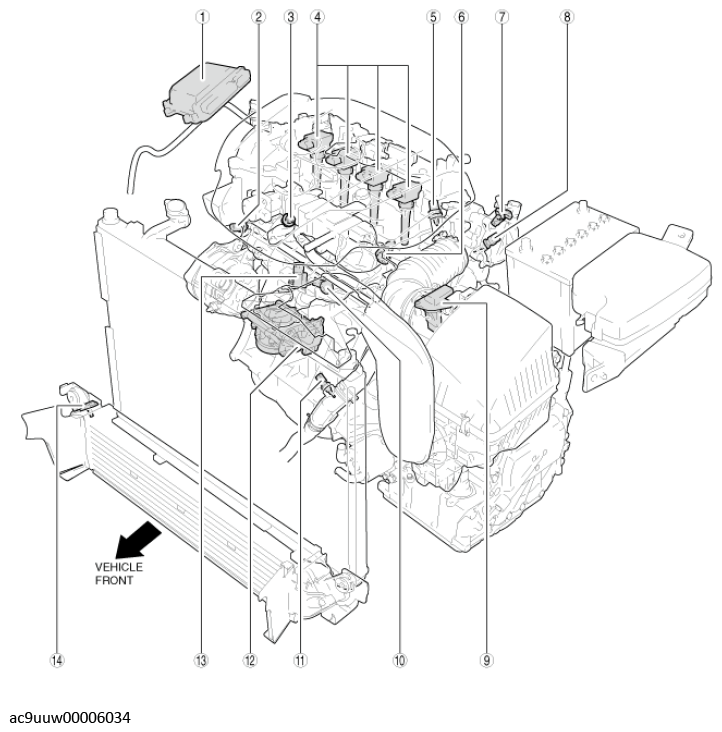

Fig 1: Control System Components Location (1 Of 2)
G12245207Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 PCM (BARO sensor, PCM temperature sensor)
(See PCM Removal/Installation .)
(See PCM Inspection .)
(See PCM Configuration (Using Read/Write Function) .)
(See PCM Configuration (Using As-built Data) .)
(See Barometric Pressure (BARO) Sensor Removal/Installation .)
(See Barometric Pressure (BARO) Sensor Inspection .)
2 High fuel pressure sensor
(See High Fuel Pressure Sensor Removal/Installation .)
(See High Fuel Pressure Sensor Inspection .)
3 Exhaust gas pressure sensor
(See Exhaust Gas Pressure Sensor Removal/Installation .)
(See Exhaust Gas Pressure Sensor Inspection .)
4 Ion sensor
(See Ion Sensor Removal/Installation .)
(See Ion Sensor Inspection .)
5 Low fuel pressure sensor/Fuel temperature sensor
(See Low Fuel Pressure Sensor/Fuel Temperature Sensor Removal/Installation .)
(See Low Fuel Pressure Sensor Inspection .)
(See Fuel Temperature Sensor Inspection .)
6 Intake CMP sensor
(See Camshaft Position (CMP) Sensor Removal/Installation .)
(See Camshaft Position (CMP) Sensor Inspection .)
7 Exhaust CMP sensor
(See Camshaft Position (CMP) Sensor Removal/Installation .)
(See Camshaft Position (CMP) Sensor Inspection .)
8 ECT sensor No. 1
(See Engine Coolant Temperature (ECT) Sensor Removal/Installation .)
(See Engine Coolant Temperature (ECT) Sensor Inspection .)
9 MAF sensor/IAT sensor No. 1
(See Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor NO. 1 Removal/Installation .)
(See Mass Air Flow (MAF) Sensor Inspection .)
(See Intake Air Temperature (IAT) Sensor Inspection .)
10 KS
(See Knock Sensor (KS) Removal/Installation .)
(See Knock Sensor (KS) Inspection .)
11 ECT sensor No. 2 (until 2017MY except MEXICO)
(See Engine Coolant Temperature (ECT) Sensor Removal/Installation .)
(See Engine Coolant Temperature (ECT) Sensor Inspection .)
12 TP sensor
(See Throttle Position (TP) Sensor Removal/Installation .)
(See Throttle Position (TP) Sensor Inspection .)
13 MAP sensor/IAT sensor No. 2
(See Manifold Absolute Pressure (MAP) Sensor/Intake Air Temperature (IAT) Sensor NO. 2 Removal/Installation .)
(See Manifold Absolute Pressure (MAP) Sensor Inspection .)
(See Intake Air Temperature (IAT) Sensor Inspection .)
14 Boost pressure sensor/Boost air temperature sensor
(See Boost Pressure Sensor/Boost Air Temperature Sensor Removal/Installation .)
(See Boost Pressure Sensor Inspection .)
(See Boost Air Temperature Sensor Inspection .)

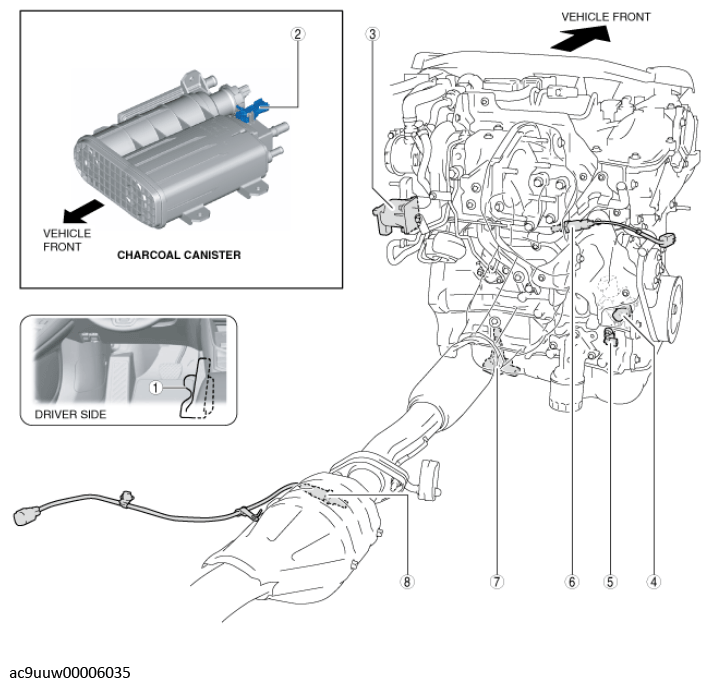

Fig 2: Control System Components Location (2 Of 2)
G12245209Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APP sensor
(See Accelerator Pedal Position (APP) Sensor Removal/Installation .)
(See Accelerator Pedal Position (APP) Sensor Inspection .)
2 Fuel tank pressure sensor (U.S.A. and CANADA)
(See Fuel Tank Pressure Sensor Removal/Installation .)
(See Fuel Tank Pressure Sensor Inspection .)
3 Wastegate valve position sensor
(See Wastegate Valve Position Sensor Removal/Installation .)
(See Wastegate Valve Position Sensor Inspection .)
4 Engine oil pressure sensor/Engine oil temperature sensor
(See Engine Oil Pressure Sensor/Engine Oil Temperature Sensor Removal/Installation .)
(See Engine Oil Pressure Sensor Inspection .)
(See Engine Oil Temperature Sensor Inspection .)
5 CKP sensor
(See Crankshaft Position (CKP) Sensor Removal/Installation .)
(See Crankshaft Position (CKP) Sensor Inspection .)
6 A/F sensor
(See Air Fuel Ratio (A/F) Sensor Removal/Installation .)
(See Air Fuel Ratio (A/F) Sensor Inspection .)
7 Engine oil level sensor
(See Engine Oil Level Sensor Removal/Installation .)
(See Engine Oil Level Sensor Inspection .)
8 HO2S
(See Heated Oxygen Sensor (HO2S) Removal/Installation .)
(See Heated Oxygen Sensor (HO2S) Inspection .)
