Cooling Fan Control Signal

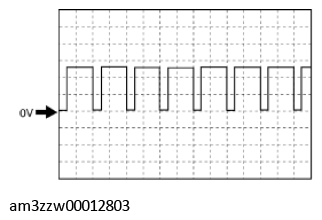

Fig 1: Cooling Fan Control Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AQ(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• Fan control module control duty value: 30%

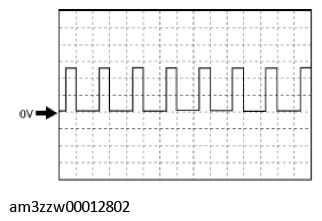

Fig 2: Cooling Fan Control Output Voltage Signal Graph - Fan Control Module Control Duty Value

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AQ(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• Fan control module control duty value: 80%
