Fuel Pump Control Signal

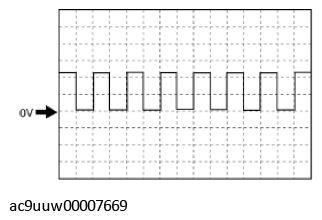

Fig 1: Fuel Pump Control Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AP(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 2 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
