Resistance Inspection: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See Plug Hole Plate Removal/Installation .)
  3. Disconnect the fuel injector connector. (See Fuel Injector Removal/Installation .)
  4. Inspect the resistance between fuel injector terminals A and B.

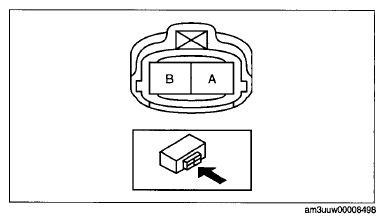

Fig 1: Fuel Injector Connector Terminals
G09074973Courtesy of MAZDA MOTORS CORP.
