Fuel Pump Unit Removal/Installation: 2WD

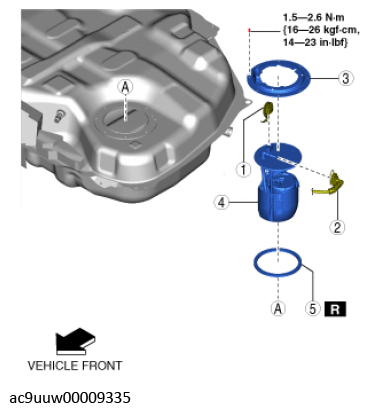

Fig 1: Fuel Pump Unit Components With Torque Specification (2WD)
G12244345Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Fuel pump unit connector
2 Quick release connector
(See Quick Release Connector Removal/Installation .)
3 Set plate
4 Fuel pump unit
5 Packing
