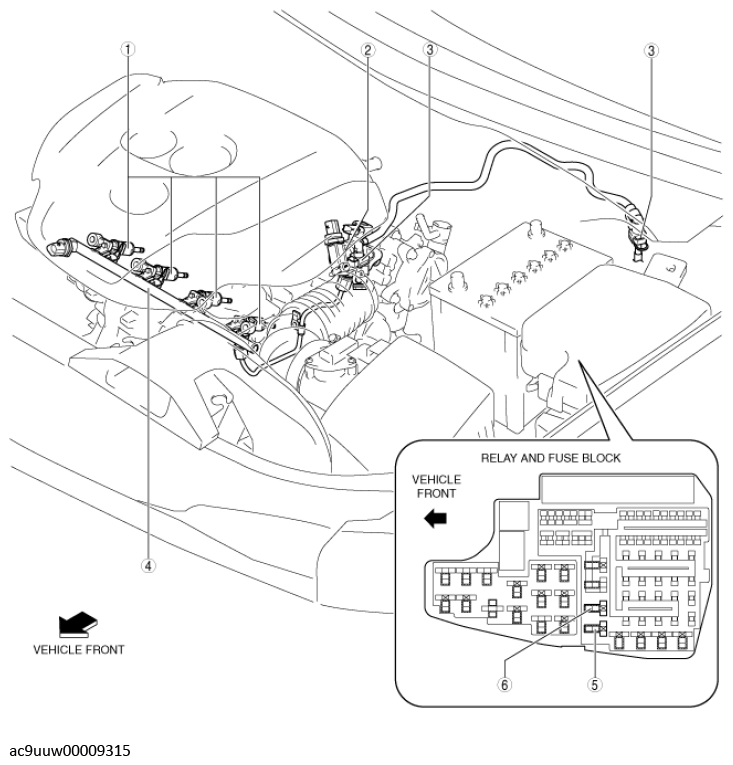

Engine Compartment Side
COMPONENT DESCRIPTION
| 1 | Fuel injector (See Fuel Injector Removal/Installation .) (See Fuel Injector Inspection .) |
| 2 | High pressure fuel pump (See High Pressure Fuel Pump Removal/Installation .) (See High Pressure Fuel Pump Inspection .) |
| 3 | Quick release connector (See Quick Release Connector Removal/Installation .) |
| 4 | Fuel distributor (See Fuel Injector Removal/Installation .) |
| 5 | Fuel pump relay (See RELAY INSPECTION .) |
| 6 | Fuel injector relay (See RELAY INSPECTION .) |
