U.S.A. And CANADA: 2WD: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See Before Service Precaution .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Drain the fuel. (See Fuel Draining Procedure .)
- Disconnect the following parts:
- Fuel pump unit connector (See Fuel Pump Unit Removal/Installation .)
- Quick release connector (See Fuel Pump Unit Removal/Installation .)
- Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector. (See Heated Oxygen Sensor (HO2S) Removal/Installation .)
- Remove the HO2S clip from the body. (See Heated Oxygen Sensor (HO2S) Removal/Installation .)
- Remove the TWC and HO2S as a single unit. (See Exhaust System Removal/Installation .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See After Service Precaution .)

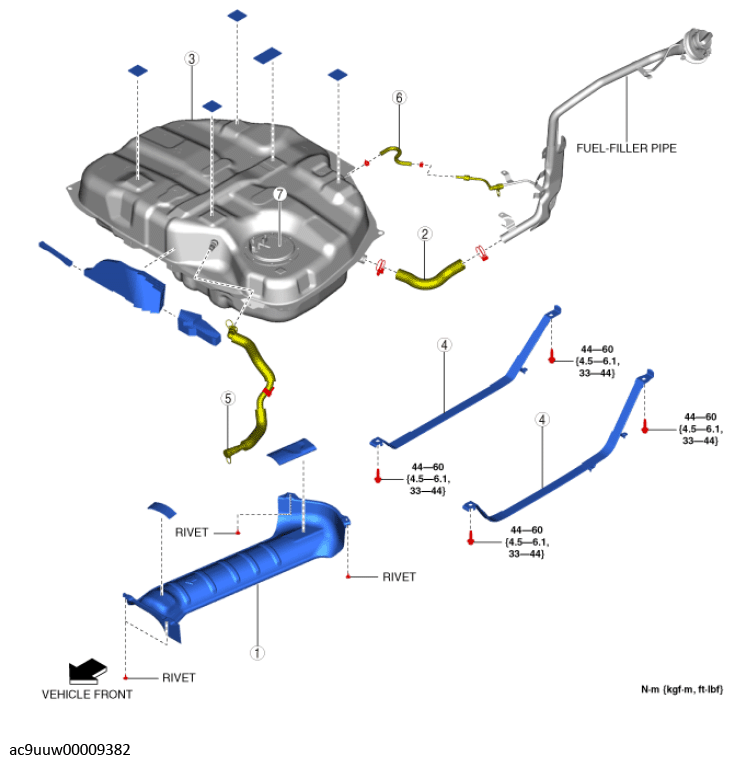

COMPONENT DESCRIPTION
| 1 | Fuel tank insulator (See Fuel tank insulator removal note (2WD) .) |
| 2 | Joint hose |
| 3 | Fuel tank (See Fuel tank removal note (2WD) .) |
| 4 | Fuel tank strap |
| 5 | Quick release connector (See Quick Release Connector Removal/Installation .) |
| 6 | Breather hose |
| 7 | Fuel pump unit (See Fuel Pump Unit Removal/Installation .) |
