U.S.A. And CANADA: AWD: Notes

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See Before Service Precaution .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Drain the fuel. (See Fuel Draining Procedure .)
Disconnect the following parts:
Main side
- Fuel pump unit connector (See Fuel Pump Unit Removal/Installation .)
- Quick release connector (See Fuel Pump Unit Removal/Installation .) Sub side
- Fuel gauge sender unit (sub) connector (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the HO2S connector. (See Heated Oxygen Sensor (HO2S) Removal/Installation .)
Remove the HO2S clip from the body. (See Heated Oxygen Sensor (HO2S) Removal/Installation .)
Remove the TWC and HO2S as a single unit. (See Exhaust System Removal/Installation .)
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Complete the "AFTER SERVICE PRECAUTION". (See After Service Precaution .)

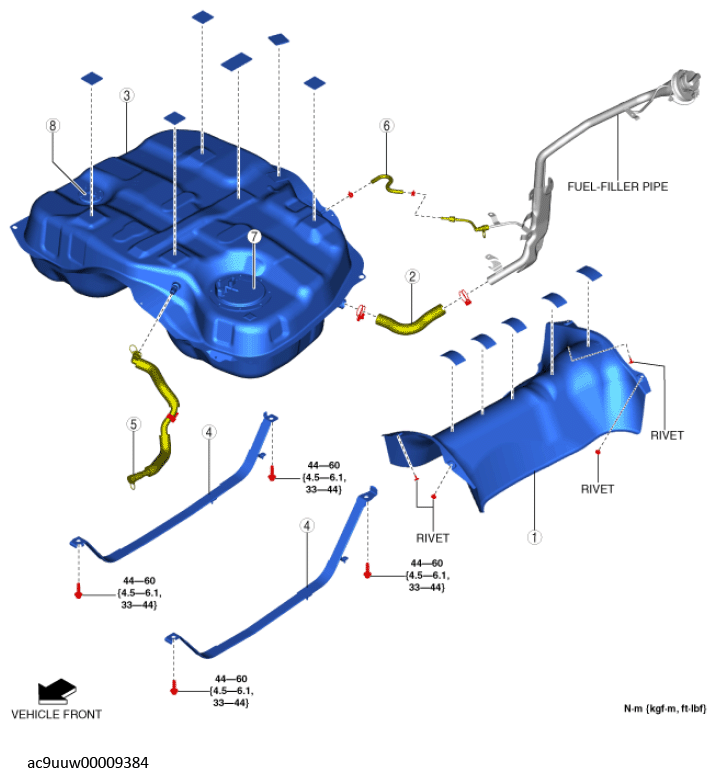

Fig 1: Fuel Tank Components With Torque Specification - U.S.A. And Canada (AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel tank insulator (See Fuel tank insulator removal note (AWD) .)
2	Joint hose
3	Fuel tank (See Fuel tank removal note (AWD) .)
4	Fuel tank strap
5	Quick release connector (See Quick Release Connector Removal/Installation .)
6	Breather hose
7	Fuel pump unit (See Fuel Pump Unit Removal/Installation .)
8	Fuel gauge sender unit (sub) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION (AWD) .)
