NO. 2 Check Engine Light Illuminates: Notes

NO. 2 CHECK ENGINE LIGHT ILLUMINATES (SKYACTIV-G 2.5T) DESCRIPTION AND POSSIBLE CAUSE

2	CHECK ENGINE LIGHT ILLUMINATES
DESCRIPTION	Check engine light illuminates incorrectly. NOTE: If there is a malfunction in the engine system, the PCM stores a DTC and illuminates the check engine light.

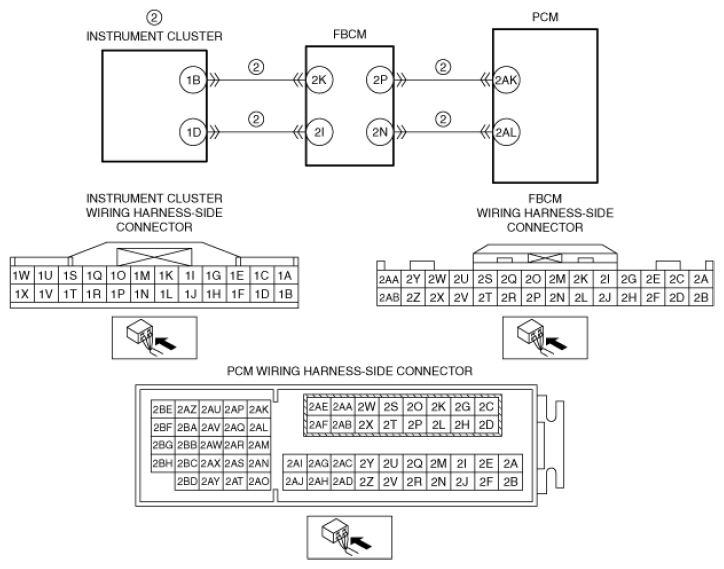

POSSIBLE CAUSE	Check engine light illuminates for emission-related concern (DTC is stored in PCM) Short to ground in wiring harness between the following terminals: Instrument cluster terminal 1B-Front body control module (FBCM) terminal 2K Instrument cluster terminal 1D-Front body control module (FBCM) terminal 2I Front body control module (FBCM) terminal 2P-PCM terminal 2AK Front body control module (FBCM) terminal 2N-PCM terminal 2AL Open circuit in wiring harness between the following terminals: Instrument cluster terminal 1B-Front body control module (FBCM) terminal 2K Instrument cluster terminal 1D-Front body control module (FBCM) terminal 2I Front body control module (FBCM) terminal 2P-PCM terminal 2AK Front body control module (FBCM) terminal 2N-PCM terminal 2AL Instrument cluster malfunction NOTE: If the check engine light blinks at a steady rate, a misfire condition could possibly exist.
