Quick Diagnostic Chart

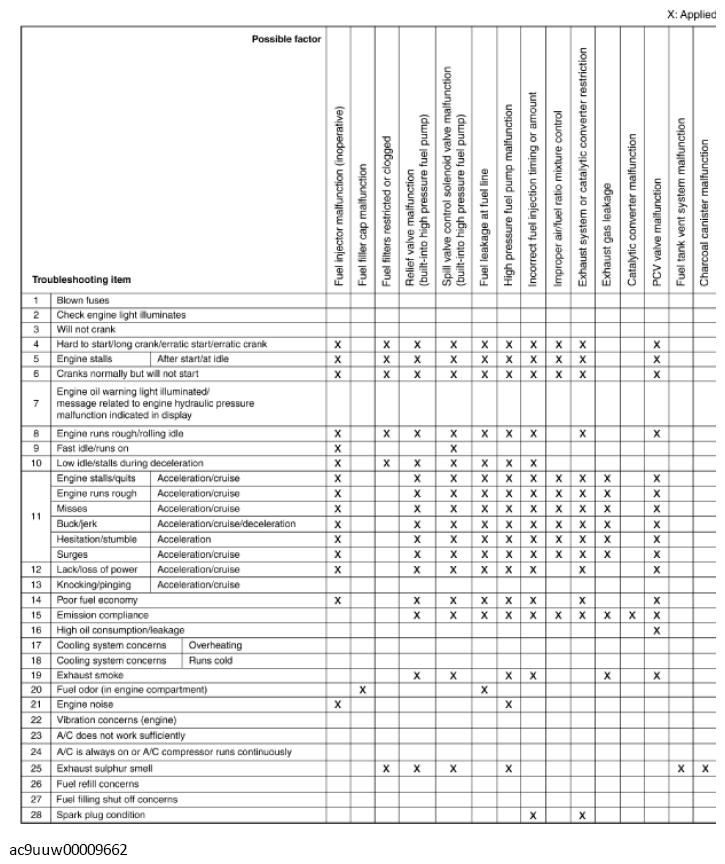

Fig 1: Quick Diagnostic Chart - Skyactiv-G 2.5T (1 Of 8)

Courtesy of MAZDA MOTORS CORP.

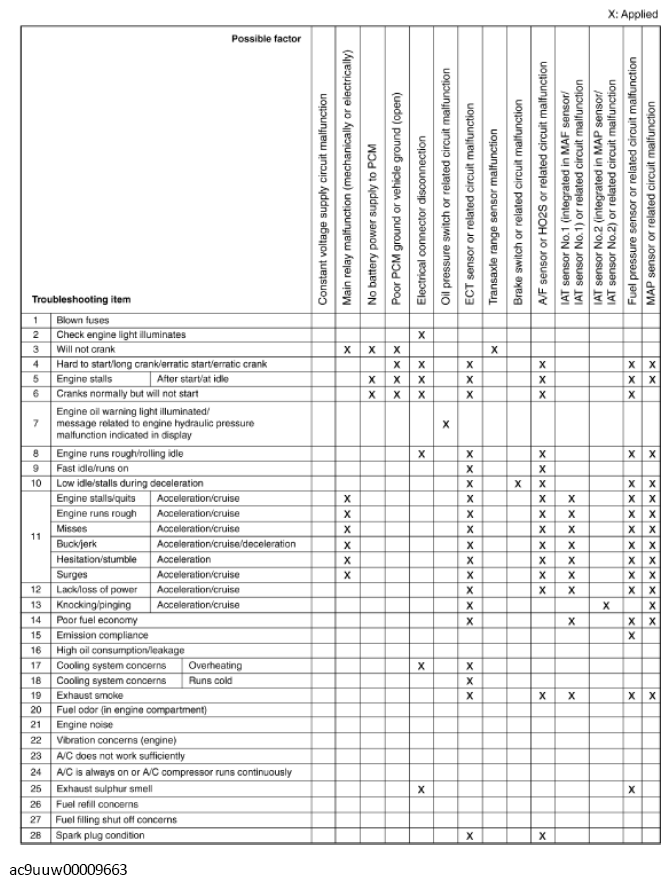

Fig 2: Quick Diagnostic Chart - Skyactiv-G 2.5T (2 Of 8)

Courtesy of MAZDA MOTORS CORP.

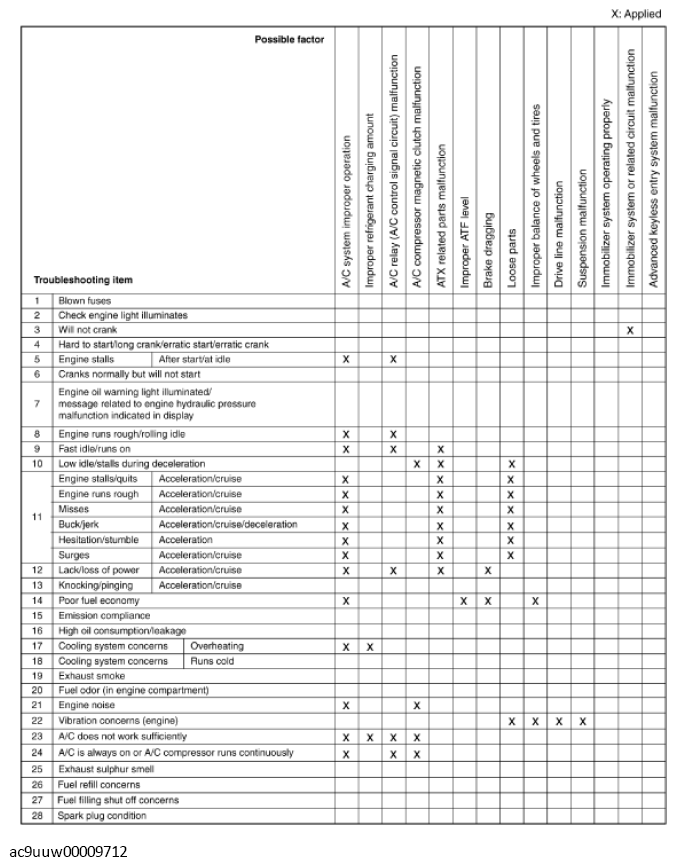

Fig 3: Quick Diagnostic Chart - Skyactiv-G 2.5T (3 Of 8)

Courtesy of MAZDA MOTORS CORP.

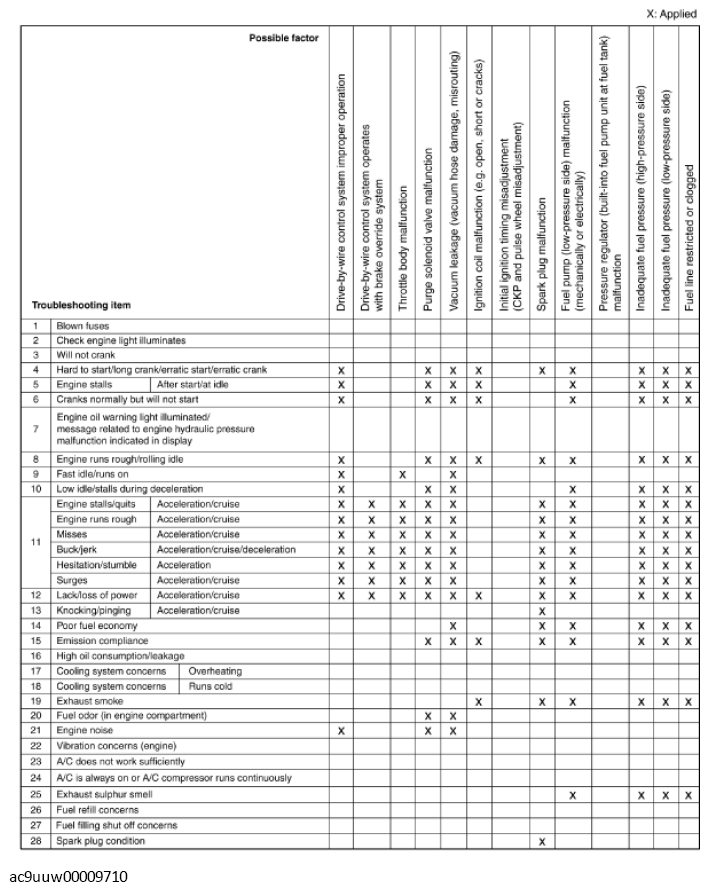

Fig 4: Quick Diagnostic Chart - Skyactiv-G 2.5T (4 Of 8)

Courtesy of MAZDA MOTORS CORP.

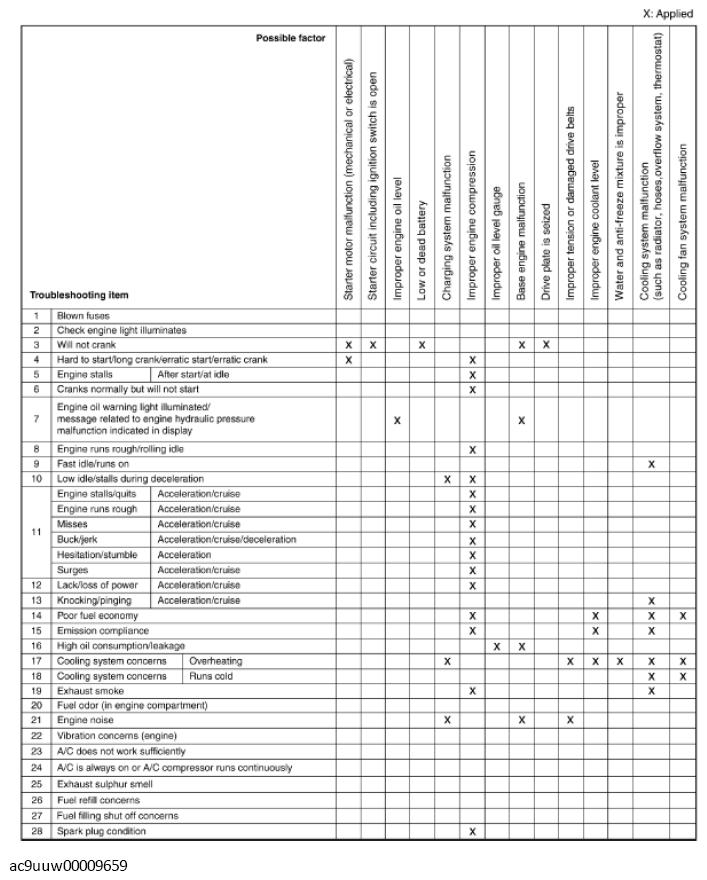

Fig 5: Quick Diagnostic Chart - Skyactiv-G 2.5T (5 Of 8)

Courtesy of MAZDA MOTORS CORP.

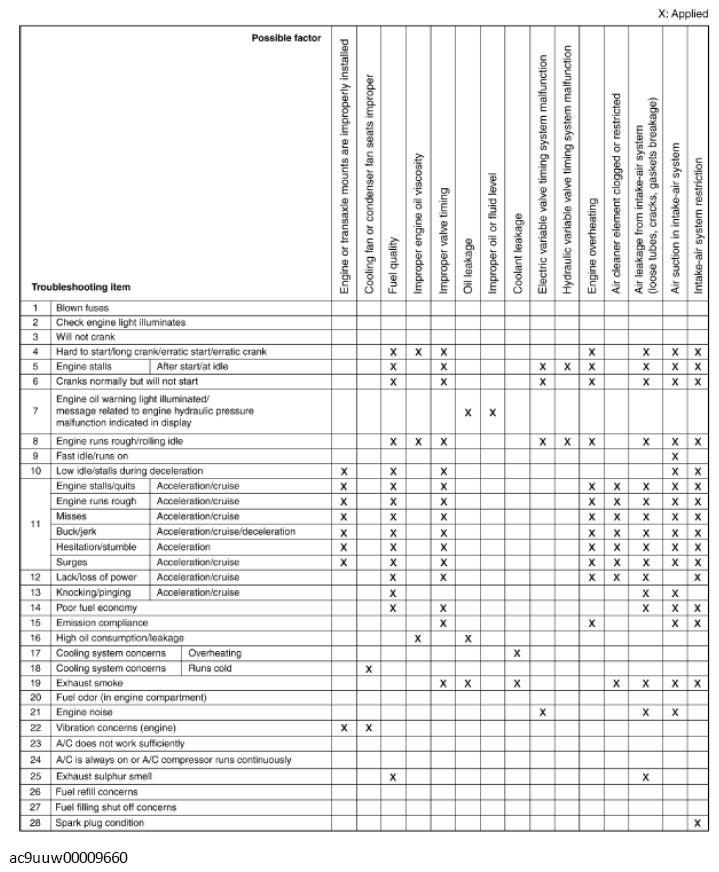

Fig 6: Quick Diagnostic Chart - Skyactiv-G 2.5T (6 Of 8)

Courtesy of MAZDA MOTORS CORP.

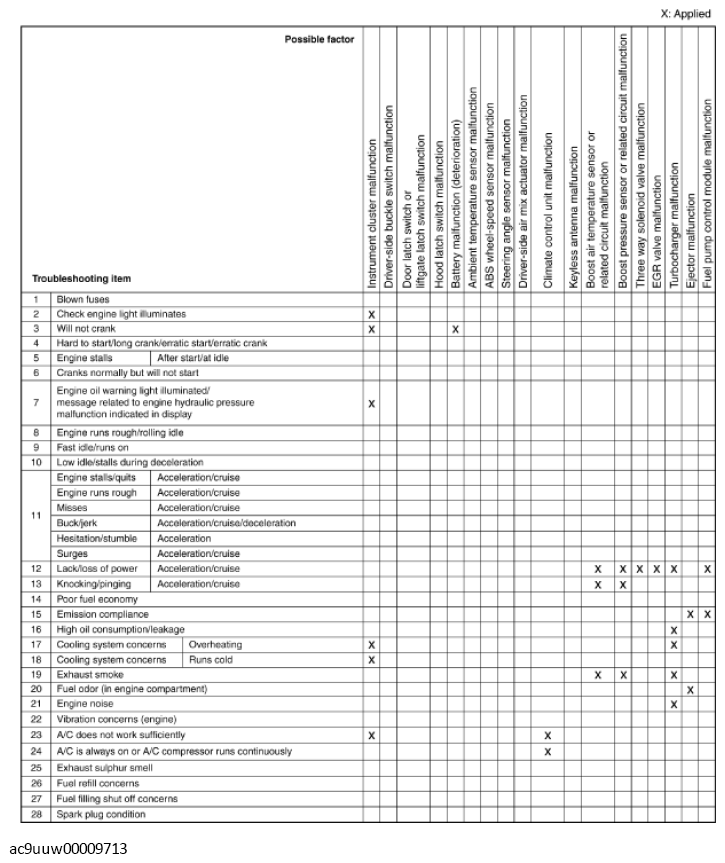

Fig 7: Quick Diagnostic Chart - Skyactiv-G 2.5T (7 Of 8)

Courtesy of MAZDA MOTORS CORP.

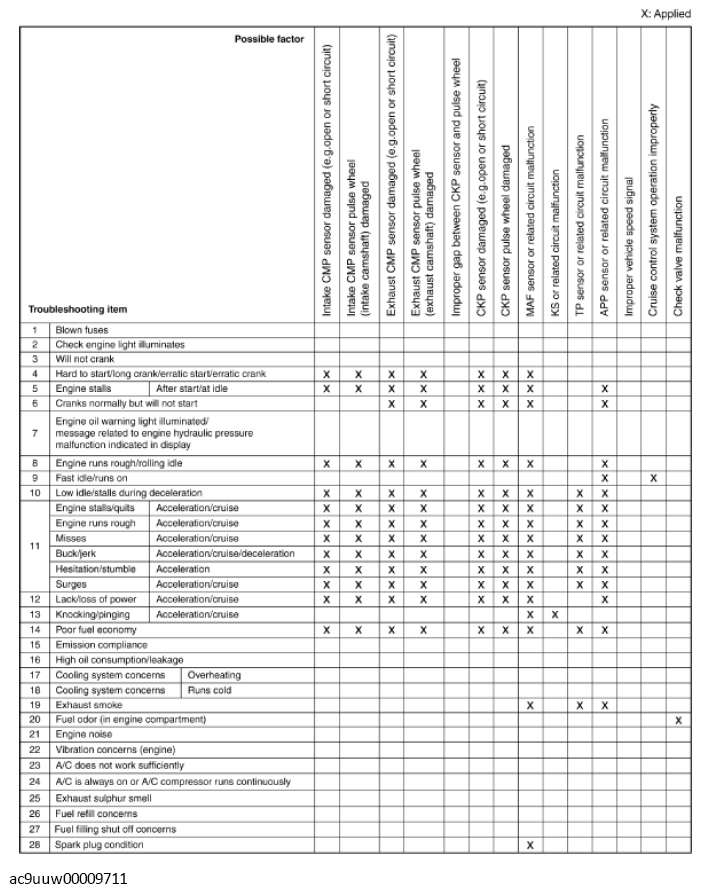

Fig 8: Quick Diagnostic Chart - Skyactiv-G 2.5T (8 Of 8)

Courtesy of MAZDA MOTORS CORP.
