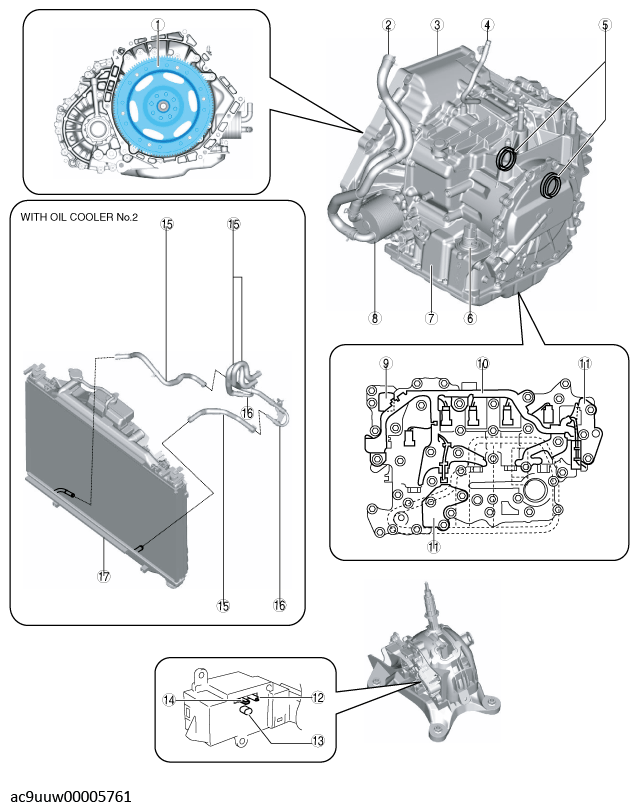

| 1 |
Drive plate
(See
Drive Plate Removal/Installation .) |
| 2 |
Water hose
(See
Oil Cooler Removal/Installation .) |
| 3 |
Automatic transaxle
(See
Mechanical System Test .)
(See
Road Test .)
(See
Automatic Transaxle Fluid (ATF) Inspection .)
(See
Automatic Transaxle Fluid (ATF) Replacement .)
(See
Automatic Transaxle Fluid (ATF) Adjustment .)
(See
Initial Learning .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 4 |
Breather hose
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 5 |
Oil seal (differential)
(See
Oil Seal (Differential) Replacement .) |
| 6 |
Oil seal (control valve body)
(See
Oil Seal (Control Valve Body) Replacement .) |
| 7 |
Control valve body
(See
Control Valve Body Removal/Installation .)
(See
TCM Configuration .) |
| 8 |
Oil cooler
(See
Oil Cooler Removal/Installation .) |
| 9 |
ON/OFF solenoid
(See
On/Off Solenoid Removal/Installation .) |
| 10 |
Coupler component
(See
Coupler Component Removal/Installation .) |
| 11 |
Oil pressure switch
(See
Oil Pressure Switch Removal/Installation .) |
| 12 |
Down switch
(See
Down Switch Inspection .)
(See
Down Switch Removal/Installation .) |
| 13 |
M position switch
(See
M Position Switch Inspection .)
(See
M Position Switch Removal/Installation .) |
| 14 |
Up switch
(See
Up Switch Inspection .)
(See
Up Switch Removal/Installation .) |
| 15 |
Oil hose
(See
Oil Cooler Removal/Installation .) |
| 16 |
Oil pipe
(See
Oil Cooler Removal/Installation .) |
| 17 |
Oil cooler No. 2
(See
Oil Cooler Removal/Installation .) |
