Transfer Oil Replacement

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the drain plug with the washer.

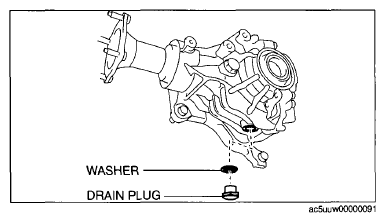

Fig 1: Drain Plug And Washer
Courtesy of MAZDA MOTORS CORP.
Drain the oil into a suitable container.
Tighten the drain plug with a new washer.

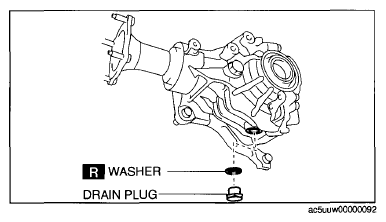

Fig 2: Drain Plug And Washer
Courtesy of MAZDA MOTORS CORP.

Tightening torque

40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}

Remove the oil level plug with the washer and add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.

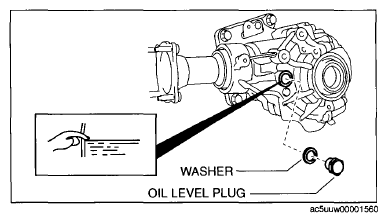

Fig 3: Checking Oil Level

G09075103

Courtesy of MAZDA MOTORS CORP.

Transfer Oil Type	Transfer Oil Capacity (approx. quantity)
MAZDA LONG LIFE HYPOID GEAR OIL SG1	0.45 L {0.48 US qt, 0.40 Imp qt}

Tighten the oil level plug with a new washer.

Fig 4: Oil Level Plug And Washer
Courtesy of MAZDA MOTORS CORP.

Tightening torque

40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}
Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
