Drive Selection Switch Removal/installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  4. Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.
    Fig 1: Shift Panel And Boots Securing Parts
    G11436214Courtesy of MAZDA MOTORS CORP.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

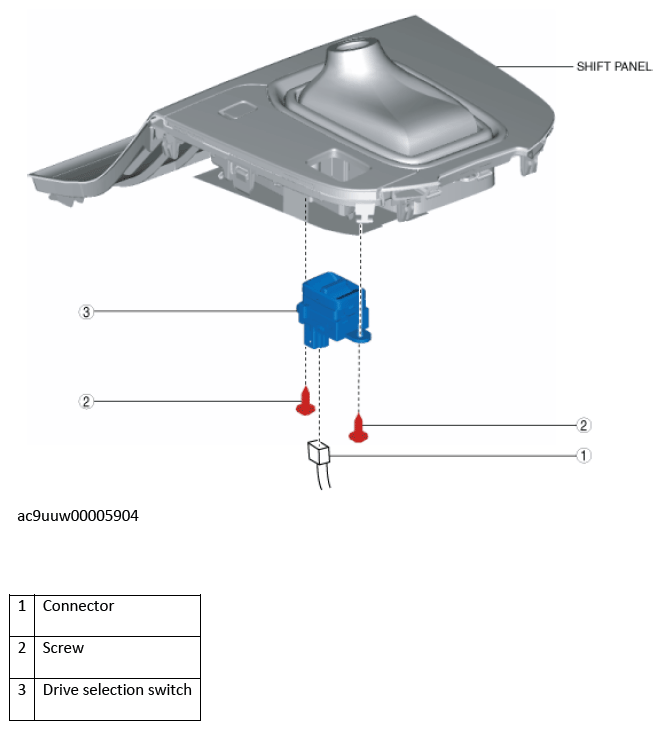

    Fig 2: Drive Selection Switch, Connector And Screw
    G12245181Courtesy of MAZDA MOTORS CORP.
