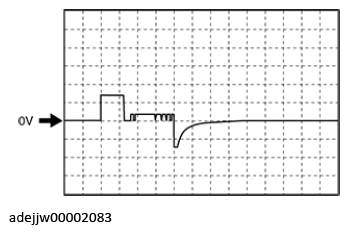

Fuel injection control (+) signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• Fuel Injection No. 1: 1DG (+) - body ground (-)
• Fuel Injection No. 2: 1CY (+) - body ground (-)
• Fuel Injection No. 3: 1CU (+) - body ground (-)
• Fuel Injection No. 4: 1DC (+) - body ground (-)

Oscilloscope setting

• 50 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
