Engine Stalls-After Start/At Idle [SKYACTIV-G]: Notes

ENGINE STALLS-AFTER START/AT IDLE [SKYACTIV-G] DETECTION CONDITION AND POSSIBLE CAUSE

Troubleshooting item	Engine stalls-after start/at idle
Description	Stalling occurs if vehicle is left idling under no load. Stalling occurs when load (electric, A/C) is applied during idling. Stalling occurs if the accelerator pedal is depressed from an idling condition when accelerating from a stop.

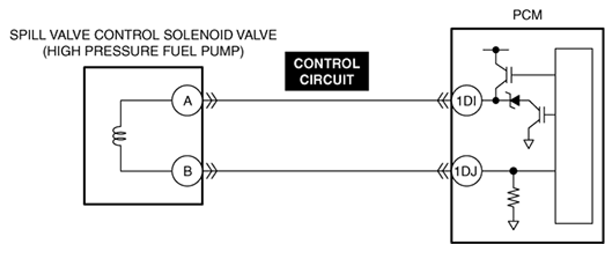

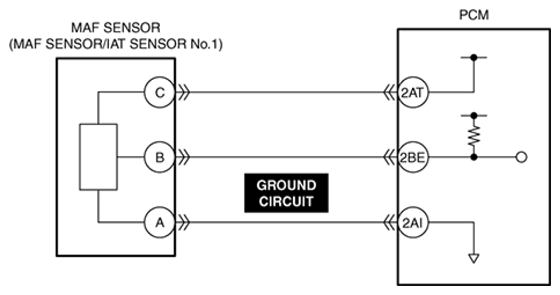

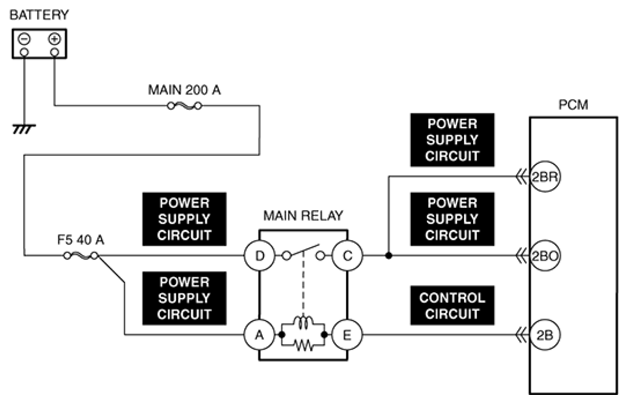

Possible cause	Engine overheating PCM DTC is stored Erratic signal to PCM APP sensor or related circuit malfunction ECT sensor No. 1 or related circuit malfunction ECT sensor No. 2 or related circuit malfunction MAF sensor or related circuit malfunction MAP sensor or related circuit malfunction A/F sensor or related circuit malfunction HO2S or related circuit malfunction Improper operation of A/C system Improper operation of drive-by-wire control system Purge solenoid valve malfunction Open circuit in MAF sensor ground circuit Intermittent open circuit in PCM ground circuit Poor fuel quality Air leakage from intake-air system Intake-air system restriction Electrical connector disconnected No battery power supply to PCM or poor ground Fuel leakage Vacuum leakage No signal from CKP sensor Loose installation Damaged trigger wheel (crankshaft pulley) Open or short circuit in related wiring harness Erratic signal from CMP sensor Loose installation Damaged trigger wheel (intake camshaft and/or exhaust camshaft) Open or short circuit in related wiring harness Inadequate fuel pressure (high or low pressure side) Fuel pressure sensor or related circuit malfunction High pressure fuel pump malfunction Spill valve control solenoid valve control circuit malfunction (damage to driver in PCM caused by short circuit to ground system) Spill valve control solenoid valve malfunction (built-into high pressure fuel pump) Relief valve (built-into high pressure fuel pump) malfunction Fuel line restriction Fuel filter clogged Fuel pump unit malfunction Fuel injector malfunction Incorrect fuel injection timing Improper operation of electric variable valve timing control system Electric variable valve timing driver malfunction Electric variable valve timing motor malfunction Electric variable valve timing actuator malfunction Improper operation of hydraulic variable valve timing control system Ignition system malfunction Ignition coil malfunction Low engine compression Improper intake valve timing Improper exhaust valve timing Exhaust system and/or TWC restricted PCV valve malfunction Injector driver (built-into PCM) malfunction
Possible cause	WARNING: The following troubleshooting flow chart contains the fuel system diagnosis and repair procedures. Read the following warnings before performing the fuel system services: Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel. Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "Fuel Line Safety Procedure" to prevent the fuel from spraying. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) Fuel may cause irritation if it comes in contact with skin and eyes. If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities. Fuel is highly flammable and dangerous. Fuel line spills and leakage can cause serious injury or death, and damage to equipment. Always refer to the "Quick Release Connector Removal/Installation (fuel system)" before performing the fuel hose installation, and execute the "Fuel Leakage Inspection" after installation. (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See AFTER SERVICE PRECAUTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See AFTER SERVICE PRECAUTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) CAUTION: Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting, and make sure that it is free of foreign material.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.	Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
