Control System Location Index

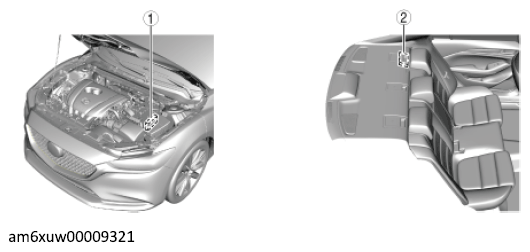

Fig 1: Control System Component Location

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION See FRONT BODY CONTROL MODULE (FBCM) INSPECTION See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA)
2	See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION See REAR BODY CONTROL MODULE (RBCM) INSPECTION See REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION) See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA) See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE
