On-Board Diagnostic Wiring Diagram (Position Memory Control Module)

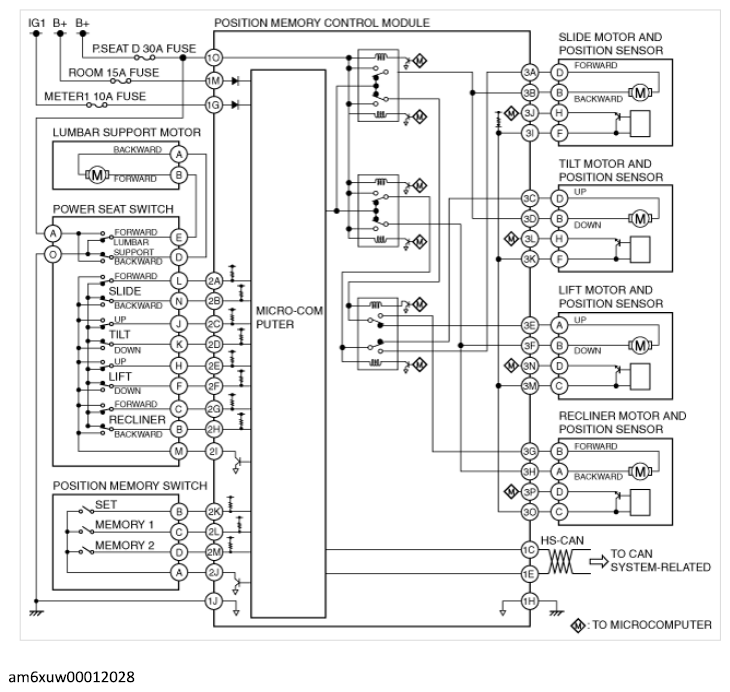

Fig 1: Position Memory Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
