Vehicle Front Side

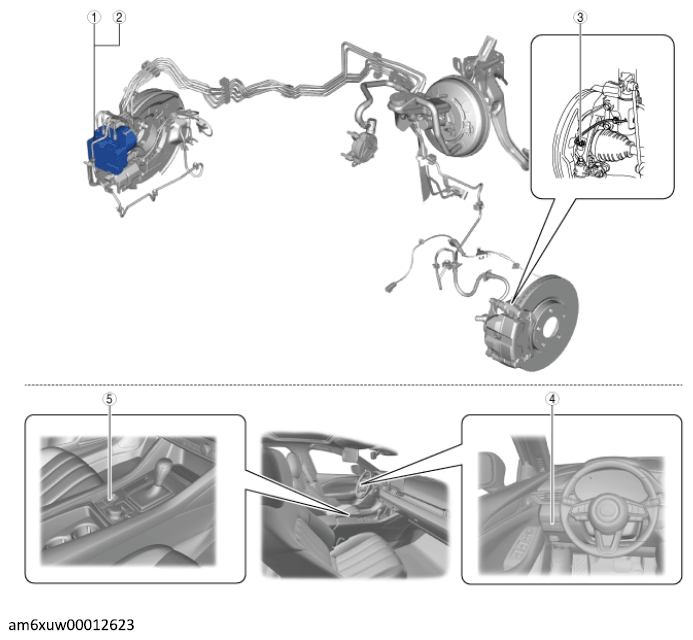

Fig 1: Dynamic Stability Control Components Location - Vehicle Front Side

Courtesy of MAZDA MOTORS CORP.

DYNAMIC STABILITY CONTROL COMPONENT OPERATIONS (VEHICLE FRONT SIDE)

Component No.	Refer to
1	See DSC HU/CM REMOVAL/INSTALLATION See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE See DSC HU/CM INSPECTION
2	See BRAKE FLUID PRESSURE SENSOR INSPECTION See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE
3	See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION See FRONT ABS WHEEL-SPEED SENSOR INSPECTION
4	See DSC OFF SWITCH REMOVAL/INSTALLATION See DSC OFF SWITCH INSPECTION
5	See AUTO HOLD SWITCH REMOVAL/INSTALLATION See AUTO HOLD SWITCH INSPECTION
