High Pressure Fuel Pump Control (-) Signal

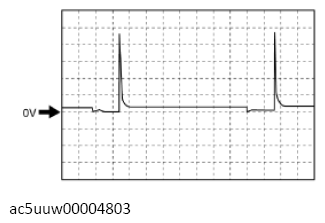

Fig 1: High Pressure Fuel Pump Control (-) Wave Pattern Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1 DJ (+)-body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
