Sensor Cover Removal/Installation

NOTE:
  • There are two types of the sensor cover. Verify the sensor cover shape before performing the procedures.
G12265602Courtesy of MAZDA MOTORS CORP.

Type A

  1. Pull the sensor cover A in the direction of the arrow shown in the figure and detach tab A of sensor cover A and sensor cover B.
    G12265603Courtesy of MAZDA MOTORS CORP.

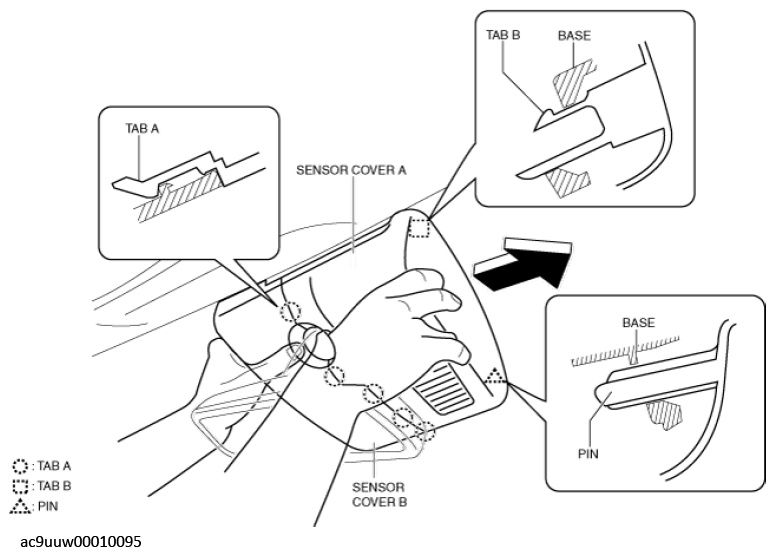

  2. Pull the sensor cover A in the direction of the arrow shown in the figure, detach the tab B and pin for sensor cover A and the base, and remove the sensor cover A from the base.
  3. Remove the wiring harness from the hook.
    G12265604Courtesy of MAZDA MOTORS CORP.

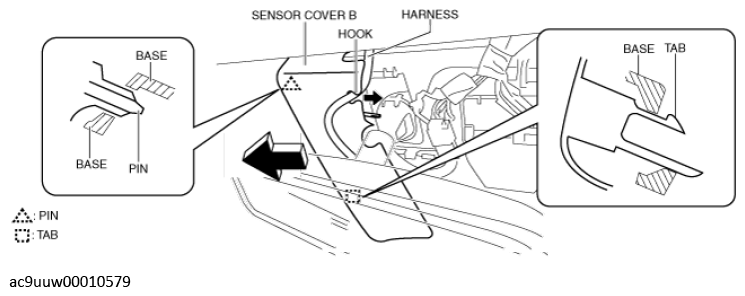

  4. Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for sensor cover B and the base, and remove the sensor cover B from the base.
  5. Install in the reverse order of removal.

Type B

  1. Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.
    G12265605Courtesy of MAZDA MOTORS CORP.
  2. Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.
    G12265606Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
