Control System Location Index

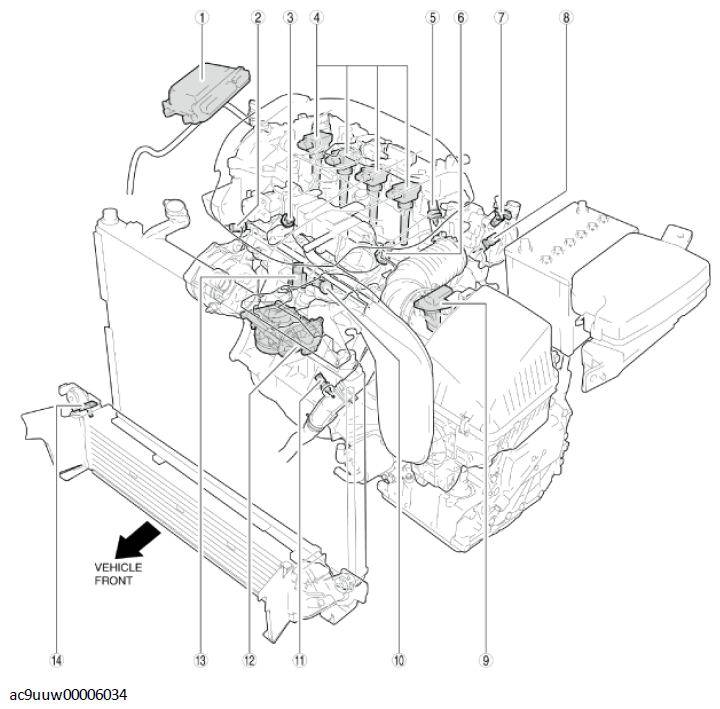

G11436069Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 PCM(BARO sensor, PCM temperature sensor)
(See PCM REMOVAL/INSTALLATION )
(See PCM INSPECTION .)
(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See PCM CONFIGURATION (USING AS-BUILT DATA) .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
2 High fuel pressure sensor
(See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See HIGH FUEL PRESSURE SENSOR INSPECTION .)
3 Exhaust gas pressure sensor
(See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See EXHAUST GAS PRESSURE SENSOR INSPECTION .)
4 Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION .)
(See ION SENSOR INSPECTION .)
5 Low fuel pressure sensor/Fuel temperature sensor
(See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
(See LOW FUEL PRESSURE SENSOR INSPECTION .)
(See FUEL TEMPERATURE SENSOR INSPECTION .)
6 Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION )
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
7 Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION )
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
8 ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
9 MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
10 KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .)
11 ECT sensor No. 2 (until 2017 MY except MEXICO)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
12 TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See THROTTLE POSITION (TP) SENSOR INSPECTION .)
13 MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
14 Boost pressure sensor/Boost air temperature sensor
(See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
(See BOOST PRESSURE SENSOR INSPECTION .)
(See BOOST AIR TEMPERATURE SENSOR INSPECTION .)
G11436072Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
2 Fuel tank pressure sensor (U.S.A. and CANADA)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
3 Wastegate valve position sensor
(See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION .)
(See WASTEGATE VALVE POSITION SENSOR INSPECTION .)
4 Engine oil pressure sensor/Engine oil temperature sensor
(See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL PRESSURE SENSOR INSPECTION .)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION .)
5 CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
6 A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
7 Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL LEVEL SENSOR INSPECTION .)
8 HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
