Knock Sensor (KS) Removal/Installation: Notes

Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the bolts.

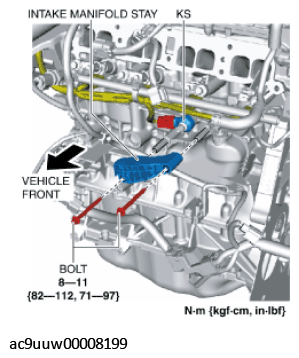

Fig 1: Intake Manifold Stay Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the intake manifold stay.
Disconnect the KS connector.
Remove the bolt.

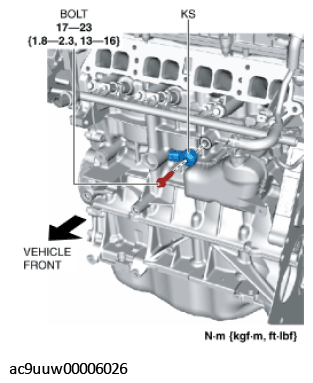

Fig 2: Knock Sensor (KS) Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the KS. (See KS INSTALLATION NOTE .)
Install in the reverse order of removal.
