Indicator Removal/Installation: Notes
- Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

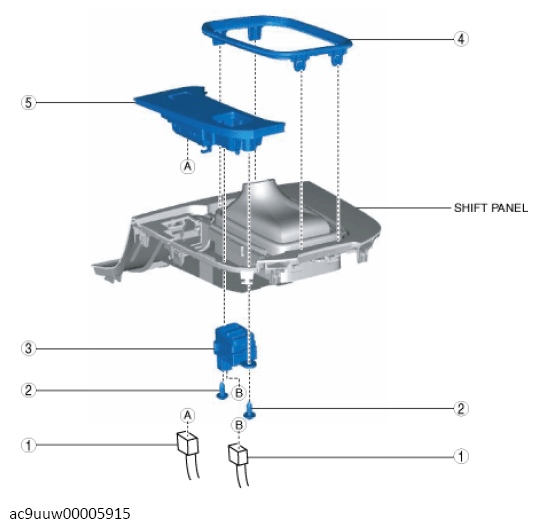

- Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Connector |
| 2 | Screw |
| 3 | Drive selection switch |
| 4 | Indicator panel |
| 5 | Indicator (See Indicator Removal Note .) |
