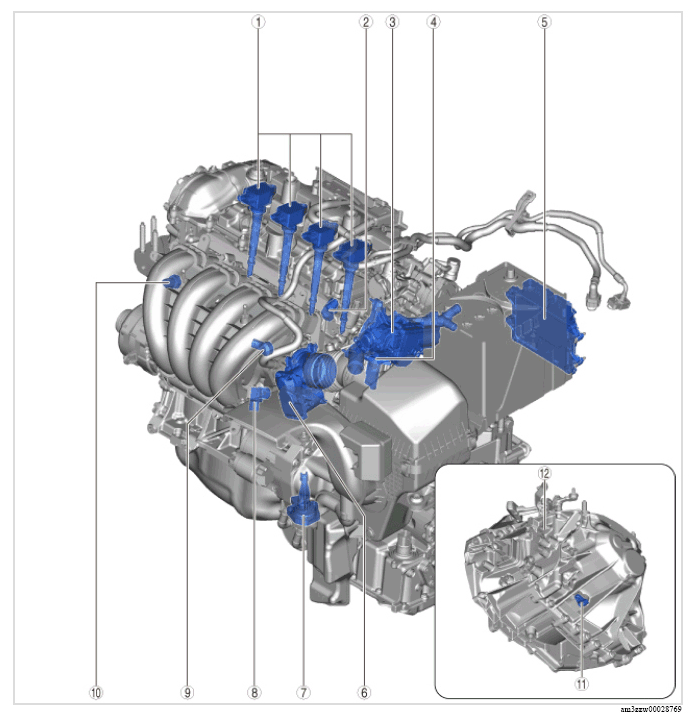

| 1 |
Ion sensor
(See
ION SENSOR REMOVAL/INSTALLATION .)
(See
ION SENSOR INSPECTION .) |
| 2 |
Intake CMP sensor
(See
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See
CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 3 |
Coolant control valve position sensor
(See
7 COOLANT CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION .)
(See
COOLANT CONTROL VALVE POSITION SENSOR INSPECTION .) |
| 4 |
MAF sensor/IAT sensor No. 1
(See
MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See
MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 5 |
PCM (BARO sensor)
(See
PCM REMOVAL/INSTALLATION .)
(See
PCM INSPECTION .)
(See
BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See
BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .) |
| 6 |
TP sensor
(See
THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See
THROTTLE POSITION (TP) SENSOR INSPECTION .) |
| 7 |
Engine oil level sensor
(See
ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
(See
ENGINE OIL LEVEL SENSOR INSPECTION .) |
| 8 |
MAP sensor/IAT sensor No. 2
(See
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 9 |
KS
(See
KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See
KNOCK SENSOR (KS) INSPECTION .) |
| 10 |
Fuel pressure sensor
(See
FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See
FUEL PRESSURE SENSOR INSPECTION .) |
| 11 |
Revolution sensor
(See
REVOLUTION SENSOR INSPECTION .) |
| 12 |
Neutral sensor
(See
NEUTRAL SENSOR INSPECTION .) |
