Position Memory Control Module Removal/Installation

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the appropriate service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Disconnect the position memory control module connector.

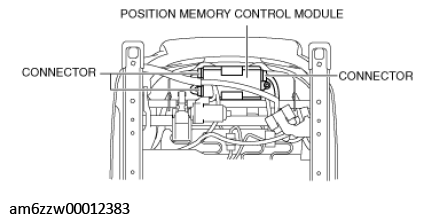

Fig 1: Position Memory Control Module Connector Location
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

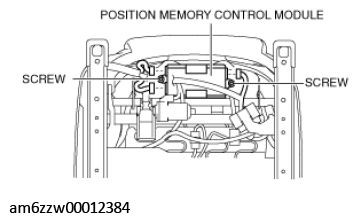

Fig 2: Position Memory Control Module Screws Location
Courtesy of MAZDA MOTORS CORP.
Remove the position memory control module.
Install in the reverse order of removal.
