Vehicle Rear Side

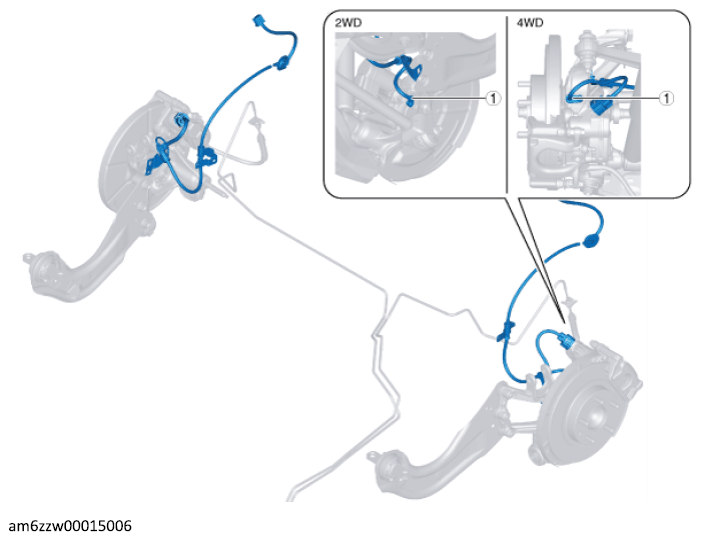

Fig 1: Dynamic Stability Control Components Location - Vehicle Rear Side

Courtesy of MAZDA MOTORS CORP.

DYNAMIC STABILITY CONTROL COMPONENT OPERATIONS (VEHICLE REAR SIDE)

Component No.	Refer to
1	See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION (2WD) See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION (AWD) See REAR ABS WHEEL-SPEED SENSOR INSPECTION (2WD) See REAR ABS WHEEL-SPEED SENSOR INSPECTION (AWD)
