Control System Wiring Diagram

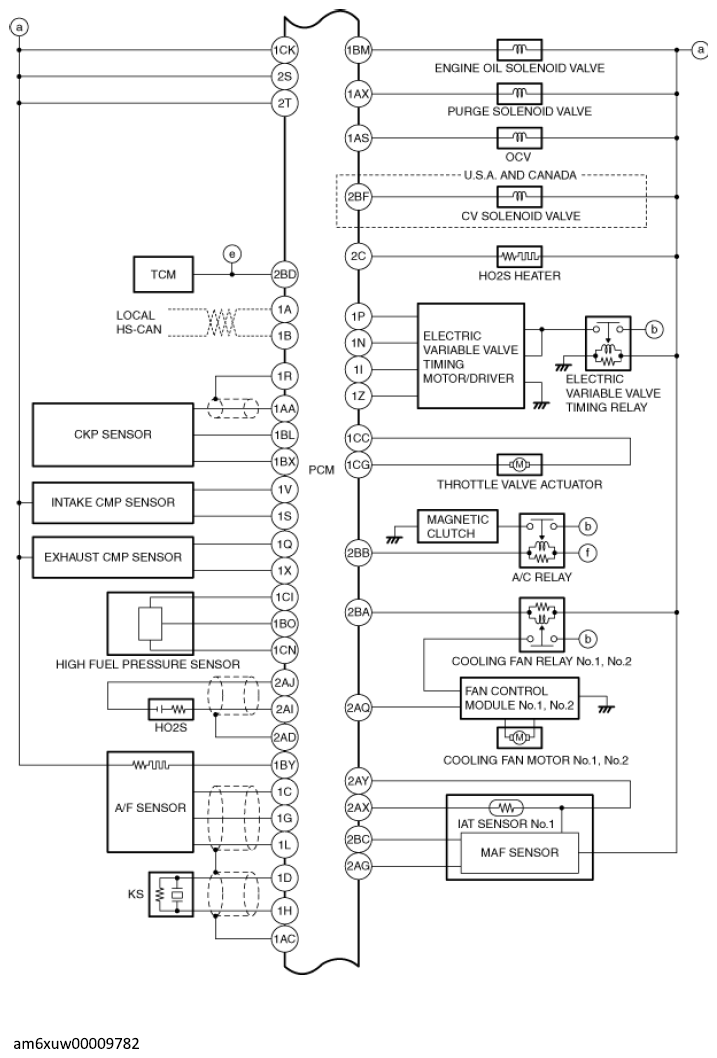

Fig 1: Control System Wiring Diagram (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

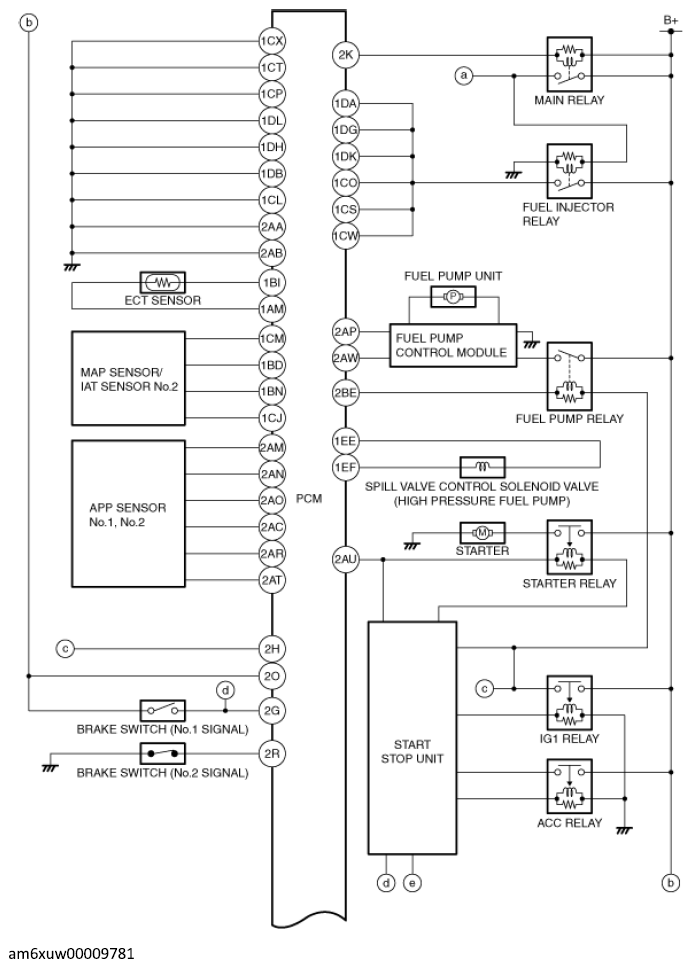

Fig 2: Control System Wiring Diagram (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

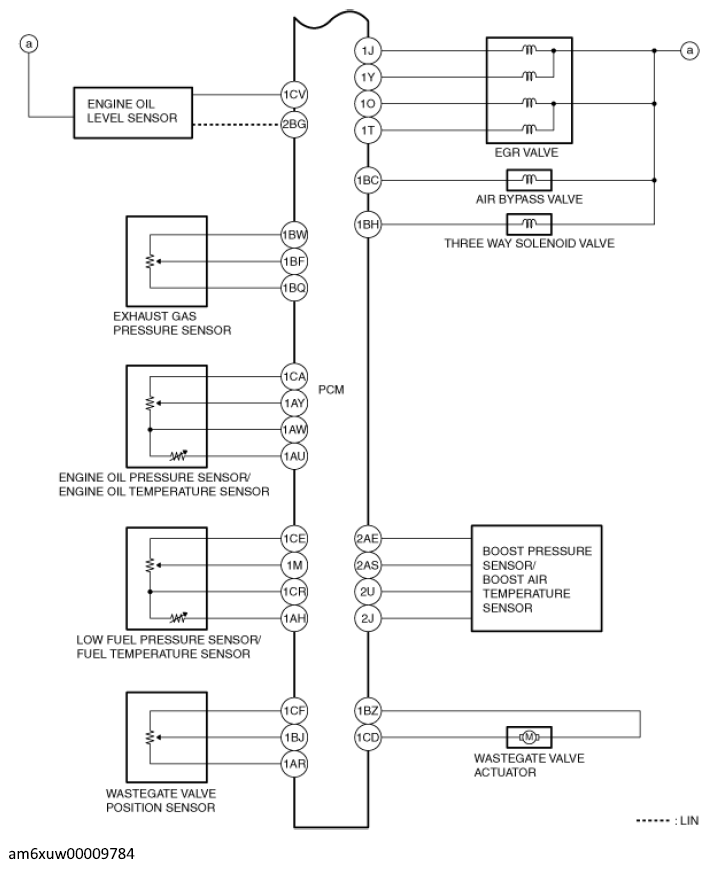

Fig 3: Control System Wiring Diagram (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

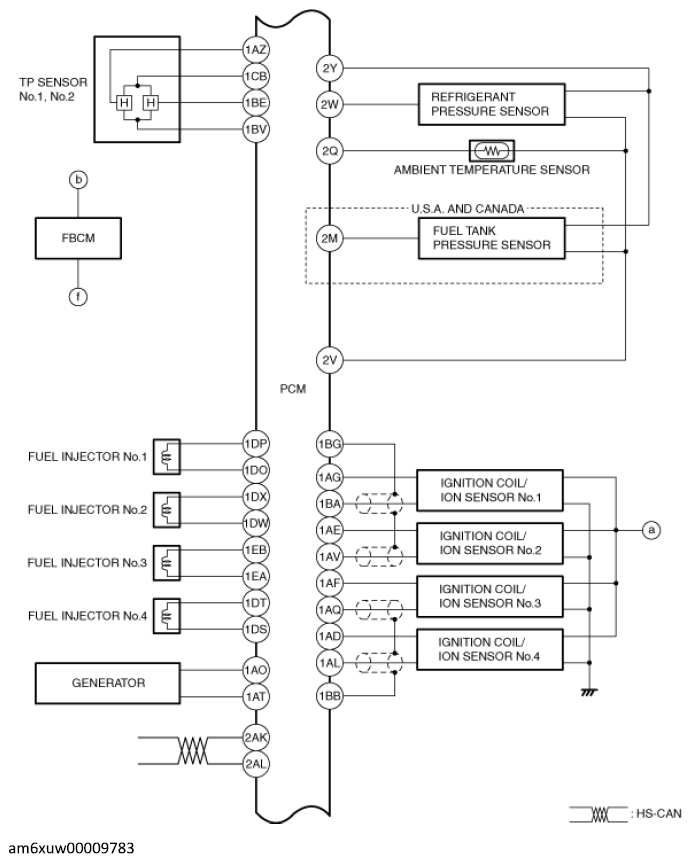

Fig 4: Control System Wiring Diagram (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
