Drive-By-Wire Control (+) Signal

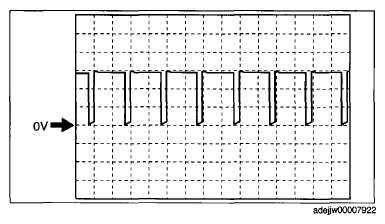

Fig 1: Drive-By-Wire Control (+) Wave Pattern Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1CQ (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
