Front Door Glass Run-Channel Removal/Installation

  1. Fully open the front door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window sub switch (front) (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    7. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    8. Front beltline moulding (See FRONT BELTLINE MOULDING REMOVAL/INSTALLATION .)
    9. Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)

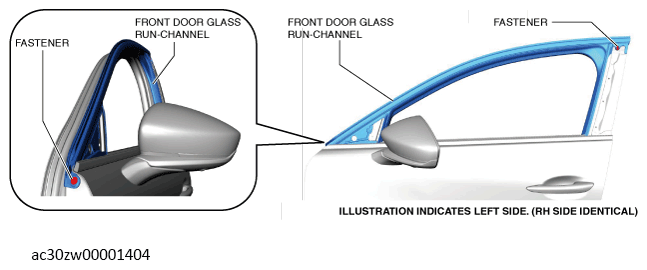

  4. Remove the fasteners.
    G13560022Courtesy of MAZDA MOTORS CORP.

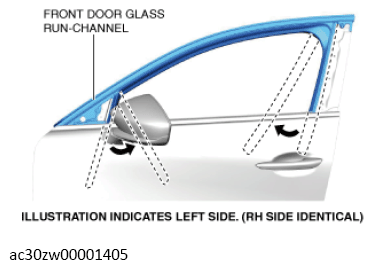

  5. Partially peel back the front door glass run-channel.
    G13560023Courtesy of MAZDA MOTORS CORP.

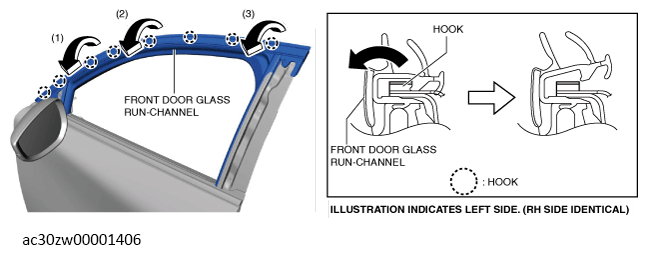

  6. Move the front door glass run-channel in the order of arrows (1), (2), and (3) shown in the illustration and remove it from the front door hooks.
    G13560024Courtesy of MAZDA MOTORS CORP.
  7. Remove the front door glass run-channel.
  8. Install in the reverse order of removal.
  9. Perform the POWER WINDOW SYSTEM INITIALIZATION PROCEDURE . (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
