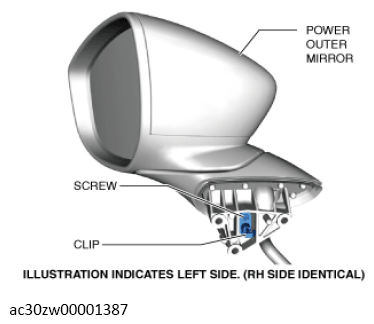

Clip Replacement Note

NOTE:

If the clip has been damaged, perform the following procedure.

Remove the screw.

Courtesy of MAZDA MOTORS CORP.
Remove the clip.
Install in the reverse order of removal.
