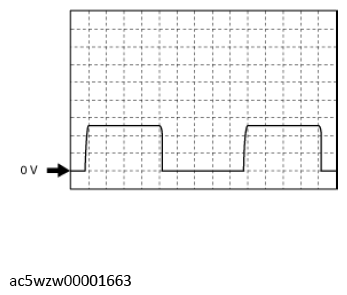

Inspection Using an Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
Terminal: 2D, 1I (+) โ ground (-) (With auto-open/close function for all windows) 2D, 2F (+) โ ground (-) (With auto-open/close function for driver-side)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
