Battery Removal/Installation (VIN M): Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

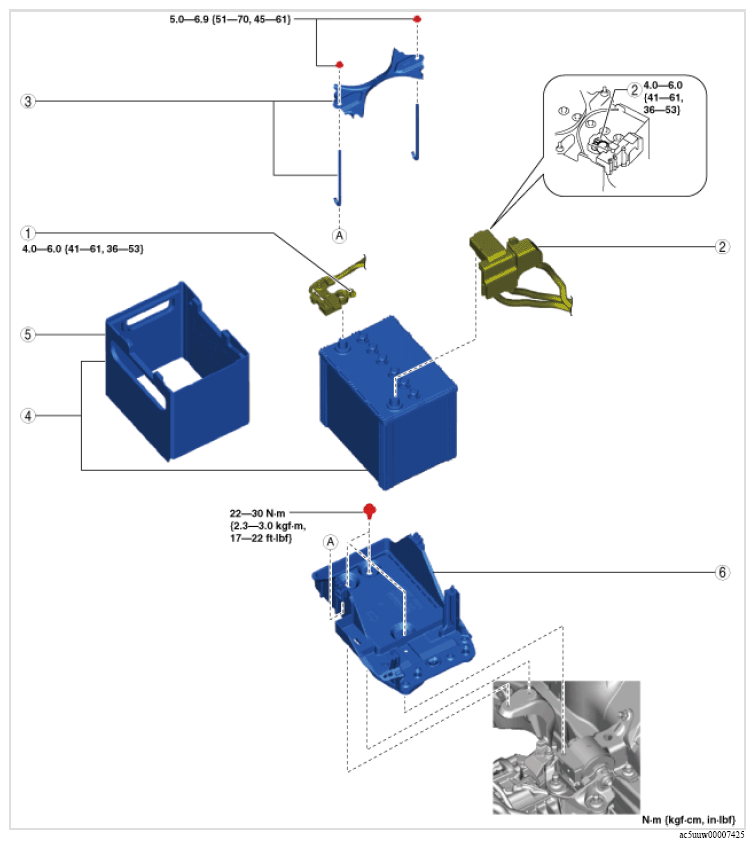

Fig 1: Removing/Installing Battery Components Location With Torque Specification (SKYACTIV-G 2.5 - With Cylinder Deactivation)
COMPONENT DESCRIPTION
| 1 | Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) |
| 2 | Positive battery terminal |
| 3 | Battery clamp |
| 4 | Battery, battery box (See Battery, Battery Box Removal Note .) |
| 5 | Battery box (See Battery Box Installation Note .) |
| 6 | Battery tray (See Battery Tray Removal Note .) (See Battery Tray Installation Note .) |
