Generator Disassembly/Assembly (VIN Y): Notes
Special Service Tool (SST)
| 49 L018 002 Serrated bit |
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

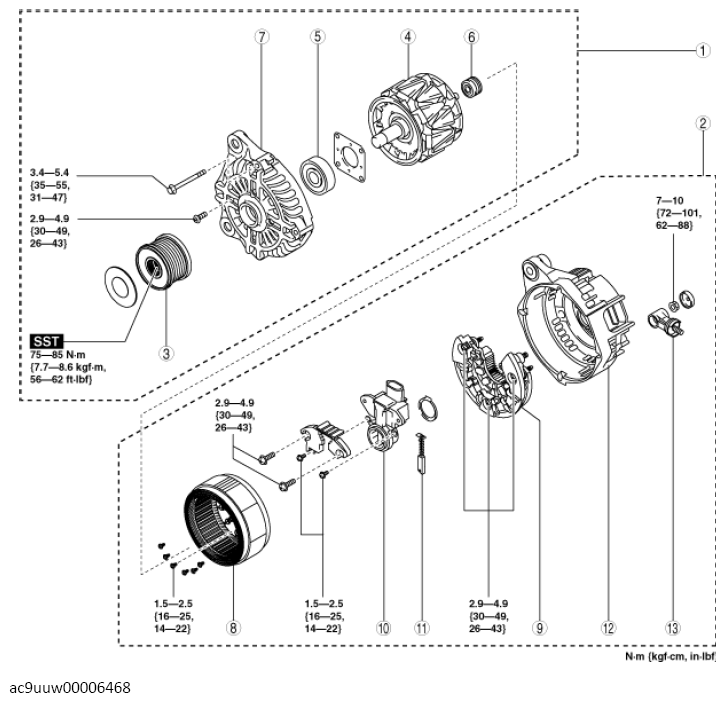

Fig 1: Disassembling/Assembling Generator Components Location With Torque Specification (SKYACTIV-G 2.5T)
COMPONENT DESCRIPTION
| 1 | Rotor component |
| 2 | Stator coil component |
| 3 | Pulley (See Pulley Disassembly/Assembly Note .) |
| 4 | Rotor |
| 5 | Front bearing |
| 6 | Rear bearing |
| 7 | Front cover |
| 8 | Stator coil |
| 9 | Rectifier |
| 10 | Brush holder |
| 11 | Brush (See Brush Disassembly Note .) (See Brush Assembly Note .) |
| 12 | Rear cover |
| 13 | Terminal B component |
