BSM Indicator Light Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Verify that the continuity between BSM indicator light connector terminals is as indicated in the table.

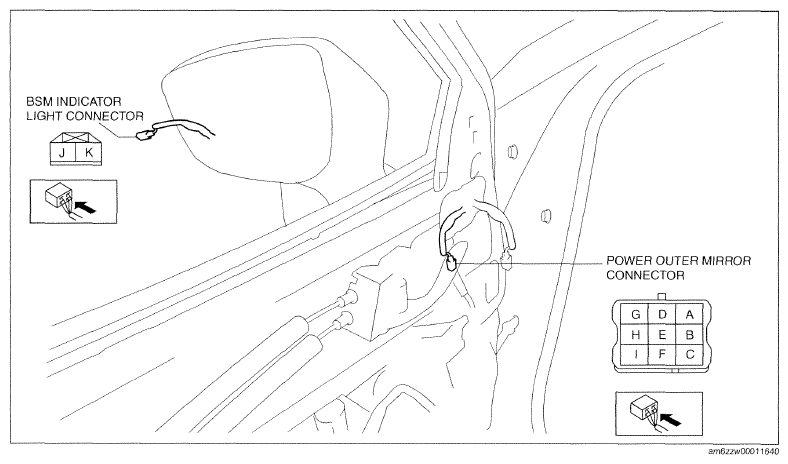

Fig 1: Inspecting BSM Indicator Light (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting BSM Indicator Light (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
