Power Outer Mirror Installation Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

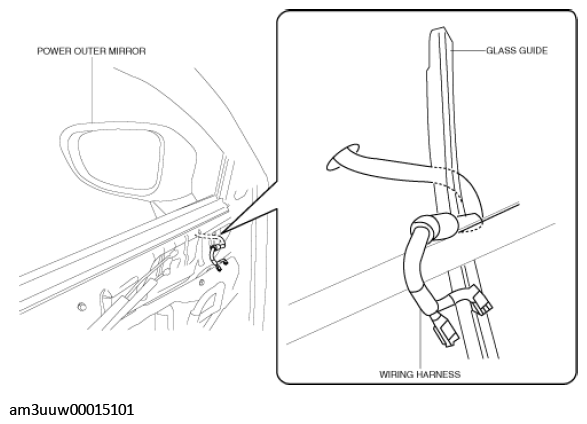

- If a wiring harness is mistakenly routed when installing a power outer mirror, it will interfere with the front door glass when opening/closing the front door glass, and could result in an open circuit. When routing the wiring harness, route it behind the glass guide.
