Auto-Open/Close Function For Driver-Side
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front door trim. (Passenger-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front power window motor connector.

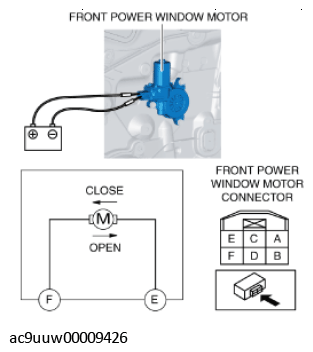

- Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.
| B+ Terminal | Ground Terminal | Operation |
|---|---|---|
| E | F | Close |
| F | E | Open |
- If the front power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
