Cooling Fan Control Signal

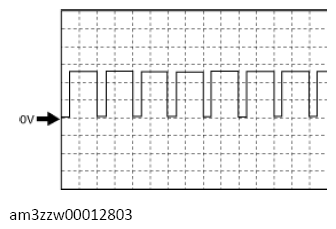

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AQ (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Fan control module control duty value: 30%

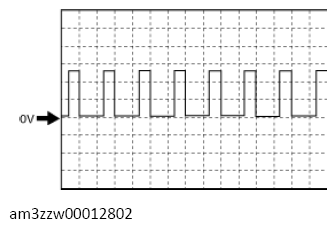

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AQ (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Fan control module control duty value: 80%
