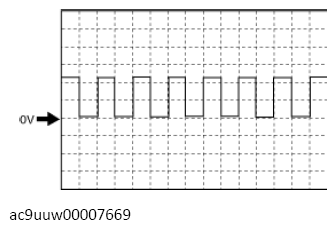

Fuel Pump Control Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AP (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
