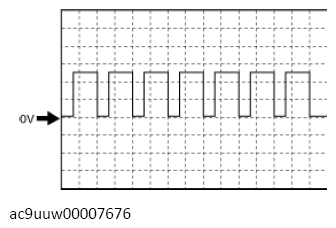

HO2S Heater Control Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2C (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Idle (immediately after starting engine)
