IGT1, IGT2, IGT3, IGT4 Control

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• IGT1 (ignition coil No. 1): 1AG (+)-body ground (-)
• IGT2 (ignition coil No. 2): 1AE (+)-body ground (-)
• IGT3 (ignition coil No. 3): 1AF (+)-body ground (-)
• IGT4 (ignition coil No. 4): 1AD (+)-body ground (-)

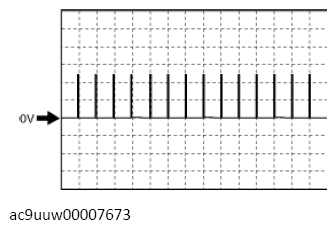

Oscilloscope setting

• 2 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
